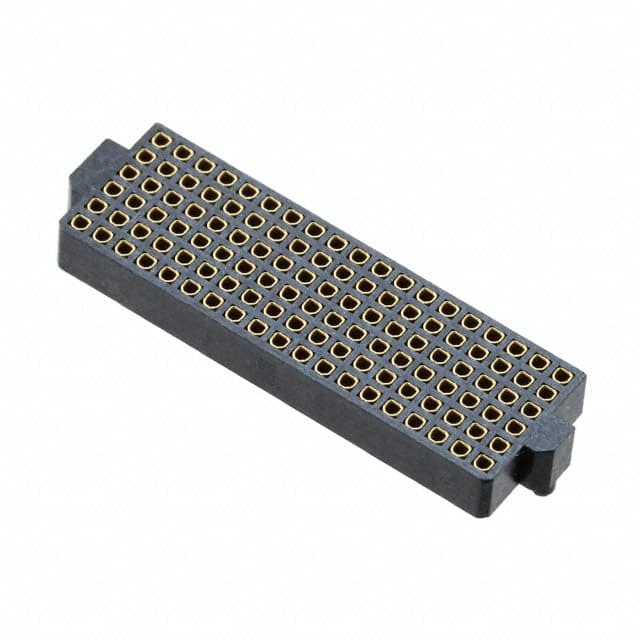

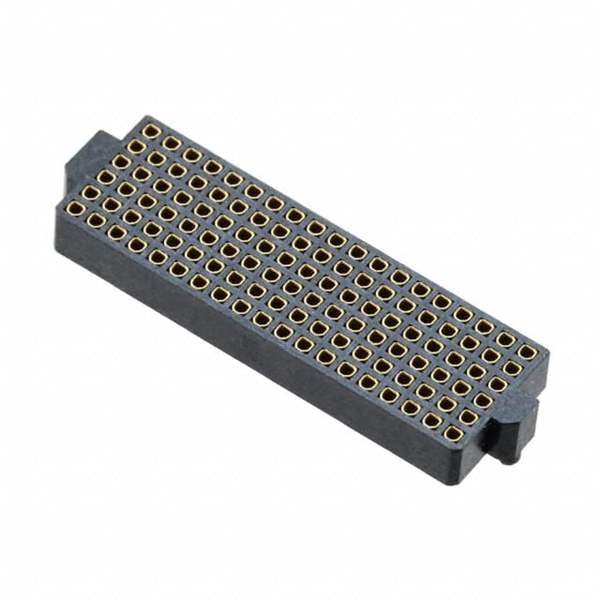

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series ASP
Package Strip
Product Status Active
Connector Type Array, Female Sockets
Number of Positions 114
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.118" (3.00mm)
Base Product Number 105884-01
Standard Package 525 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 911776-ASP-105884-01
Ultra Librarian 3D Model Ultra Librarian ASP-105884-01 CAD Model

Description

The ASP 911776-ASP-105884-01 is an array connector designed for edge type mezzanine board-to-board connections.

  • Positions: 114
  • Pitch: 0.050" (1.27mm)
  • Features: Board guide
  • Type: Female sockets
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Strip package
  • Standard Package: 525 pieces
  • Height Above Board: 0.118" (3.00mm)
  • Mounting: Surface mountable
  • ECCN: EAR99 compliant
  • REACH: Not affected
  • Manufacturer: Samtec Inc.
  • Series: 105884-01 series
  • Status: Active
  • Compliance: California Prop 65 warning information
