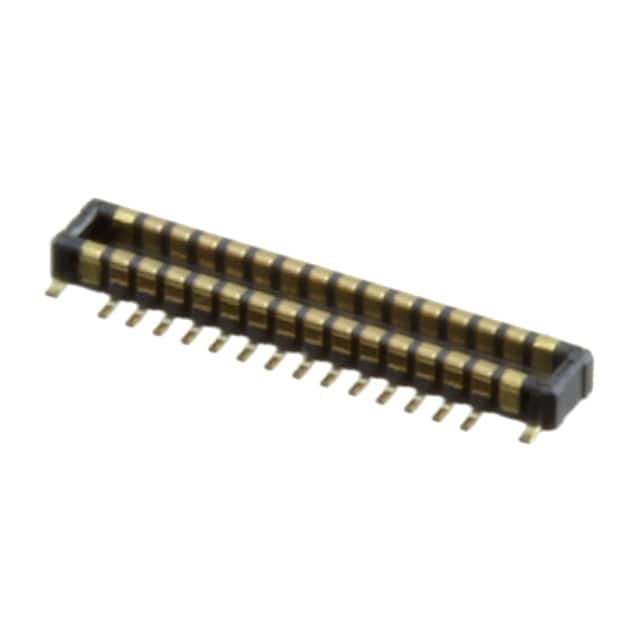

WP25D-P028VA1-R8000
Same model may have multiple batches, images only for reference.

WP25D-P028VA1-R8000

Part No WP25D-P028VA1-R8000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 28POS SMD GOLD / 28 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Datasheet
WP25D-P028VA1-R8000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP25D
Package Tape & Reel
Product Status Not For New Designs
Connector Type Plug, Outer Shroud Contacts
Number of Positions 28
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.022" (0.57mm)
Base Product Number WP25D-P0
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 903278-WP25D-P028VA1-R8000
Ultra Librarian 3D Model Ultra Librarian WP25D-P028VA1-R8000 CAD Model

Description

The WP25D-P028VA1-R8000 is a mezzanine board-to-board connector from the WP25D series by JAE Electronics.

  • Positions: 28
  • Pitch: 0.014" (0.35mm)
  • Features: Solder Retention
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Height Above Board: 0.022" (0.57mm)
  • Product Status: Active
