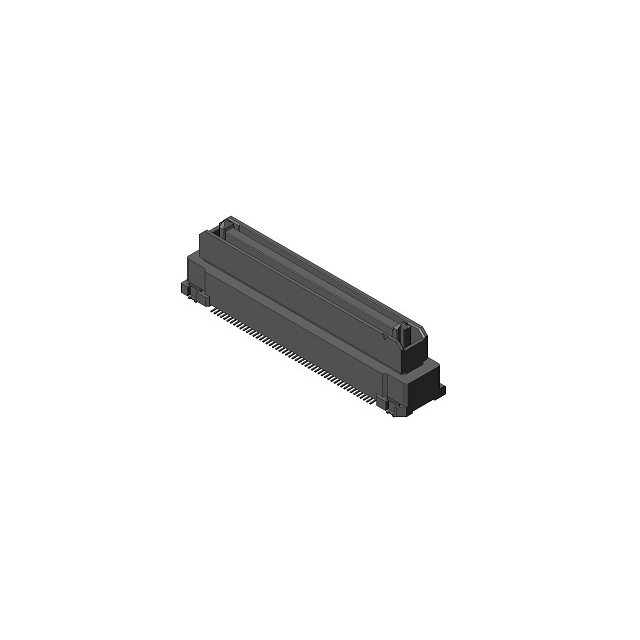

AX01F100VABBR300 Real Image
Same model may have multiple batches, images only for reference.

AX01F100VABBR300

Part No AX01F100VABBR300
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description FLOATING SIDE B2B CONNECTOR, 80 / 100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
AX01F100VABBR300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series AX01
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 100
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.484" (12.29mm)
Base Product Number AX01F100
Standard Package 300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349347-AX01F100VABBR300
Ultra Librarian 3D Model Ultra Librarian AX01F100VABBR300 CAD Model

Description

The AX01F100VABBR300 is a board-to-board connector from JAE Electronics that features a receptacle with center strip contacts.

  • Positions: 100
  • Pitch: 0.025 inches
  • Features: Board guides and solder retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Package: Tape and reel
  • Height Above Board: 0.484 inches (12.29mm)
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
