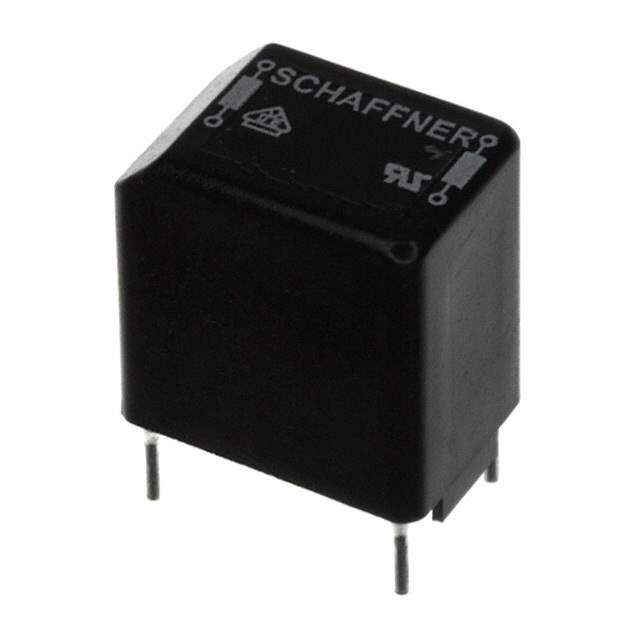

RN212-1.5-02-3M3

Name: RN212-1.5-02-3M3
Brand: Schaffner EMC Inc.
SKU: 1088728
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RN212-1.5-02-3M3
Manufacturer	Schaffner EMC Inc.
Catalog	Common Mode Chokes
Description	CMC 3.3MH 1.5A 2LN TH / 3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 102mOhm (Typ)
Datasheet	RN212-1.5-02-3M3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	Schaffner EMC Inc.
Series	RN
Package	Tube
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	3.3 mH @ 10 kHz
Current Rating (Max)	1.5A
DC Resistance (DCR) (Max)	102mOhm (Typ)
Voltage Rating - AC	300V
Temperature Range - Operating	-40°C ~ 100°C
Approval Agency	ENEC, UR, VDE
Mounting Type	Through Hole
Dimension	0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max)	0.799" (20.30mm)
Package / Case	Vertical, 4 PC Pin
Base Product Number	RN212
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	816546,817-2171
Standard Package	500
Win Source Part Number	1088728-RN212-1.5-02-3M3
Ultra Librarian 3D Model	Ultra Librarian RN212-1.5-02-3M3 CAD Model

Alternative Products

Description

The RN212-1.5-02-3M3 is a Common Mode Choke filter component from Schaffner EMC Inc.

Manufacturer: Schaffner EMC Inc.
Series: RN series
Voltage Rating: 300V-AC
Filter Type: Power Line
Mounting Type: Through-Hole
MSL Level: 1 (Unlimited)
REACH: Unaffected
Current Rating (max): 1.5A
Inductance @ Frequency: 3.3 mH @ 10 kHz
Dimension: 0.709" L x 0.492" W (18.00mm x 12.50mm)
Package/Case: Vertical, 4 PC pin
