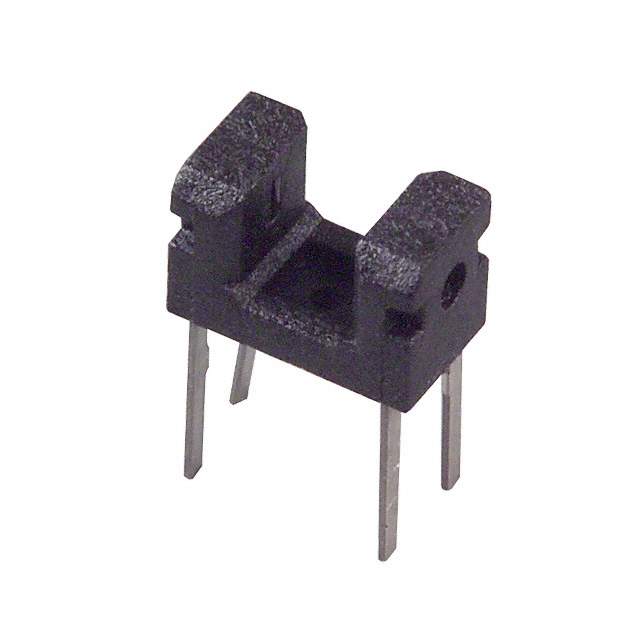

The GP1S093HCZ is a compact and reliable photointerrupter from Sharp Microelectronics, designed for detecting the presence or absence of an object passing through its slot. This sensor integrates an infrared LED and a phototransistor, enabling precise and accurate detection in a variety of applications. Its robust construction and stable performance make it suitable for use in industrial equipment, office automation, and consumer electronics.

Applications

• Paper detection in printers and copiers
• Object detection in vending machines
• Position detection in robotics
• Coin detection in arcade games
• End-of-travel detection in linear actuators

Features

• Compact slot-type design
• Infrared LED and phototransistor integrated
• High sensitivity
• Fast response time
• Stable output characteristics
• RoHS compliant

Benefits

• Accurate Object Detection: The GP1S093HCZ provides precise and reliable detection of objects passing through its slot, ensuring accurate operation in various applications.
• Compact Design: The small size of the sensor allows for easy integration into space-constrained designs.
• Fast Response Time: The quick response time enables real-time detection of objects, improving system performance.
• Stable Performance: The sensor offers consistent and reliable performance over a wide range of operating conditions.
• Easy Integration: The simple design and standard pinout make it easy to integrate into existing circuits.

The GP1S093HCZ operates by emitting infrared light from the LED, which is detected by the phototransistor when the slot is clear. When an object passes through the slot, it blocks the infrared light, causing the phototransistor to change its state. This change in state can be easily detected by a microcontroller or other electronic circuit, indicating the presence of the object.

The sensor is designed for through-hole mounting and has a standard pinout, making it easy to connect to a circuit board. The GP1S093HCZ is also RoHS compliant, meaning it does not contain any hazardous substances.
