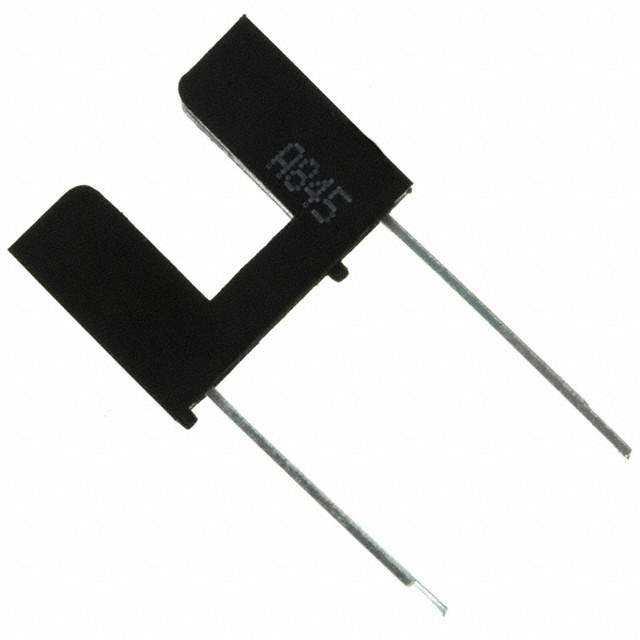

AEDS-9310 Real Image
Same model may have multiple batches, images only for reference.

AEDS-9310

Part No AEDS-9310
Manufacturer Broadcom Limited
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description Infra-Red Wavelength | SENSOR OPT SLOT PHOTOTRAN PCB MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Packaging Bulk
Status Obsolete
Sensing Distance 0.197" (5mm)
Sensing Method Transmissive
Output Configuration Phototransistor
Current - DC Forward (If) (Maximum) 50mA
Current - Collector (Ic) (Maximum) 10mA
Voltage - Collector Emitter Breakdown (Maximum) 30V
Response Time 20μs, 20μs
Temperature Range - Operating -25°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package PCB Mount
Type Unamplified
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1142801-AEDS-9310
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AEDS-9310 CAD Model

Description

The Broadcom Limited 1142801-AEDS-9310 is an obsolete phototransistor sensor with a sensing distance of 0.197 inches (5mm) and a response time of 20μs.

  • Status: Obsolete
  • Sensing Distance: 0.197 inches (5mm)
  • Response Time: 20μs
  • Maximum DC Forward Current: 50mA
  • Maximum Collector Current: 10mA
  • Operating Temperature: -25°C to 85°C
  • Voltage Breakdown: 30V
  • Package: PCB mount
  • Quantity: 200
  • Type: transmissive
  • Mounting Style: through-hole
  • Ideal for: use in transducers and sensors applications.
