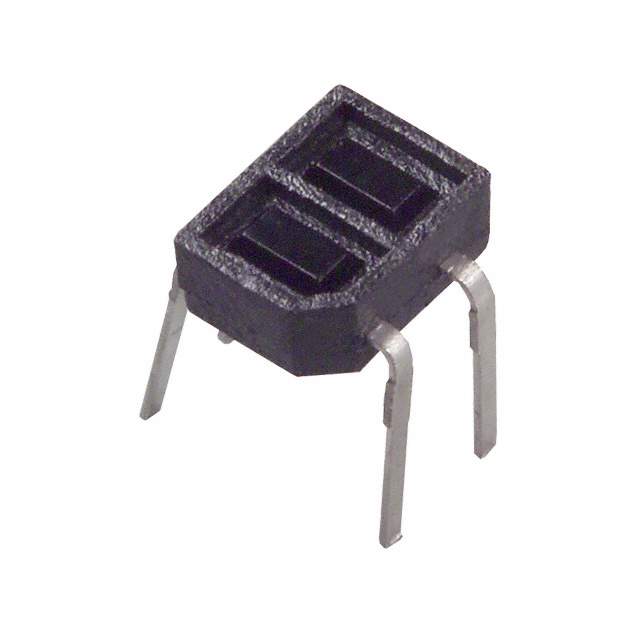

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Bulk
Status Obsolete
Sensing Distance 0.031" (0.8mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Maximum) 35V
Current - Collector (Ic) (Maximum) 20mA
Current - DC Forward (If) (Maximum) 50mA
Output Type Phototransistor
Response Time 20μs, 20μs
Mounting Style Through Hole
Manufacturer Package PCB Mount
Temperature Range - Operating -25°C ~ 85°C
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1177523-GP2S24
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian GP2S24 CAD Model

Description

The Sharp Microelectronics phototransistor is a high-quality electronic component that is perfect for various applications.

  • Win Source Part Number: 1177523-GP2S24
  • Category: sensors and transducers
  • Popularity: medium
  • Sensing Method: reflective
  • Sensing Distance: 0.031" (0.8mm)
  • Mounting: through-hole
  • Packaging: bulk
  • Response Time: 20μs
  • Output Type: phototransistor
  • Manufacturer: Sharp Microelectronics
