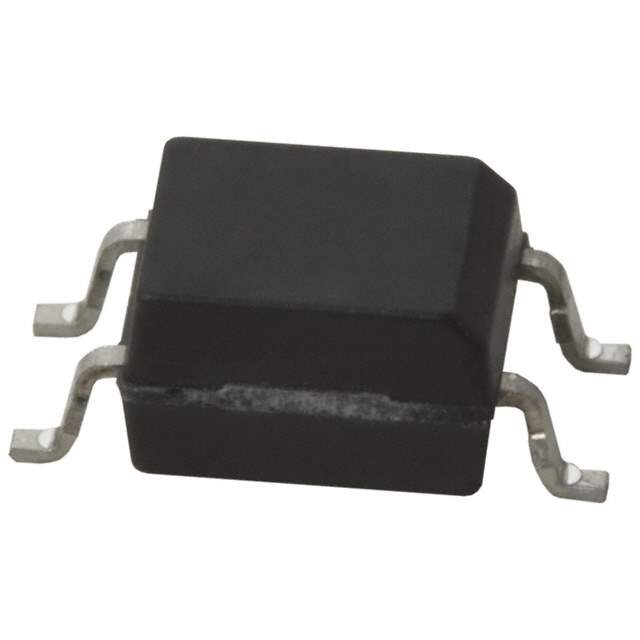

PC357T13J00F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 125811-PC357T13J00F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC357T13J00F CAD Model

Description

The PC357T13J00F is an obsolete (EOL) optocoupler manufactured by Sharp Microelectronics.

  • Category: Isolators
  • Package: 4-mini-flat
  • DC Current Transfer Ratio (min): 50 percent @ 5mA
  • DC Current Transfer Ratio (max): 600 percent @ 5mA
  • Isolation Voltage: 3750Vrms
  • Channel Output Current: 50mA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Supply and Demand Status: balance
