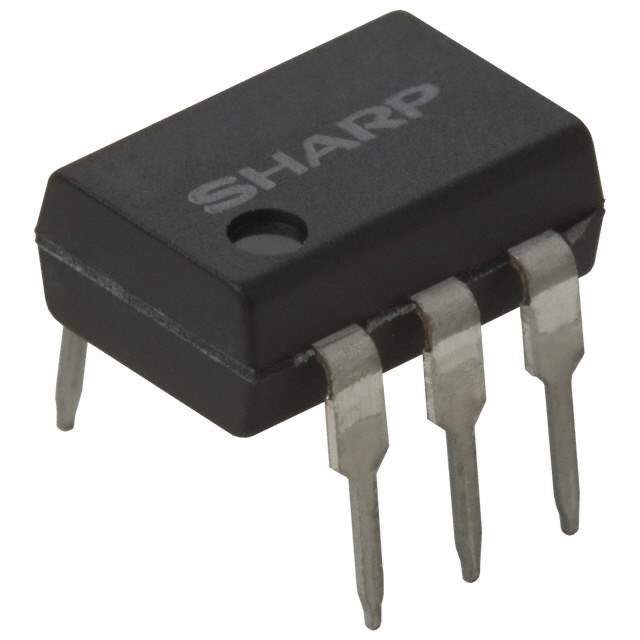

PC3SD11NTZCH Real Image
Same model may have multiple batches, images only for reference.

PC3SD11NTZCH

Part No PC3SD11NTZCH
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 18 Weeks
Features Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
Manufacturer Sharp Microelectronics
Package Tube
Operating Temperature Range -30°C ~ 100°C
Mounting Through Hole
Package 6-DIP (0.300", 7.62mm), 5 Leads
Case / Package 6-DIP
Family Name PC3SD11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930046-PC3SD11NTZCH
Ultra Librarian 3D Model Ultra Librarian PC3SD11NTZCH CAD Model

Description

The Sharp Microelectronics PC3SD11NTZCH optoisolator is a highly reliable and efficient triac output designed to isolate electronic devices from high voltage.

  • Isolation Voltage: 5000Vrms
  • Channels: 1
  • Package: 6-DIP
  • Mounting: Through-Hole
  • Family Name: PC3SD11
  • Category: Isolators
  • Operating Temperature: -30°C ~ 100°C
  • Supply and Demand: Balanced
  • Quantity per Package: 50
  • MSL Level: 1 (Unlimited)
  • Production Lead Time: 18 weeks
  • HTSUS code: 8541.40.8000
