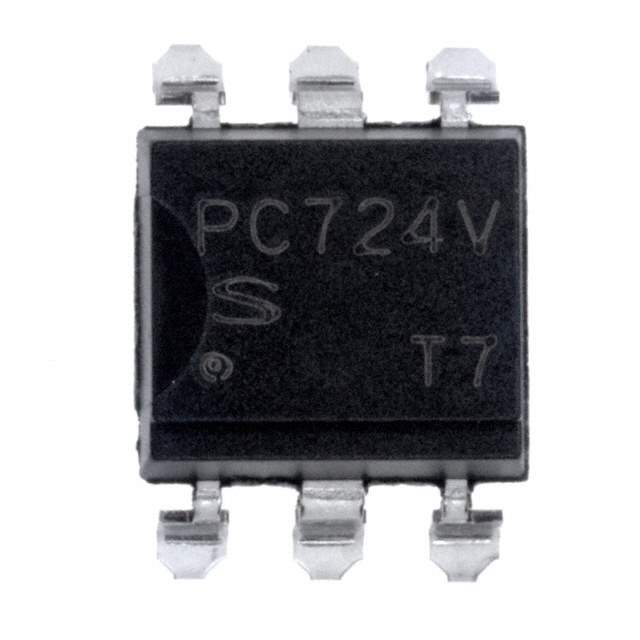

PC724V0NIPXF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 20% @ 100mA
Maximum DC Current Transfer Ratio 80% @ 100mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 80mA
Forward Voltage 1.4V
Continuous forward current- Max 150mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -25°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 112360-PC724V0NIPXF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC724V0NIPXF CAD Model

Description

The Sharp Microelectronics PC724V0NIPXF is an obsolete optocoupler that comes in a 6-SMD package.

  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 20% @ 100mA
  • Maximum DC Current Transfer Ratio: 80% @ 100mA
  • Switching Turn-On Time: Not specified
  • Switching Turn-Off Time: Not specified
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Output Type: Transistor
  • Forward Voltage: 1.4V
  • Vce Saturation (Max): 200mV
  • Input Type: DC
  • Channels: 1
  • Maximum Output Voltage: 35V
  • Channel Output Current: 80mA
  • Continuous Forward Current-Max: 150mA
  • Temperature Range: -25°C to 100°C
