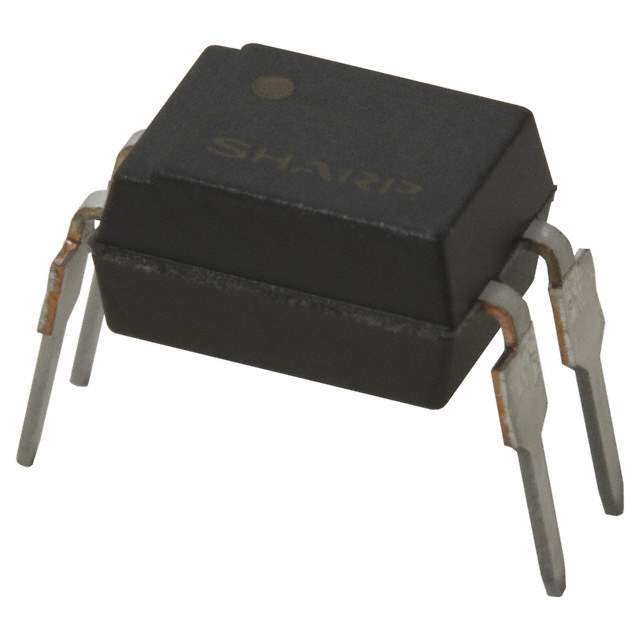

The PC817 optoisolator is a transistor, photovoltaic output isolator that comes in a tube packaging with a standard package of 2,000. With a forward current (If) of 50 mA and a forward voltage (Vf) of 1.2V, this optoisolator has a rise/fall time of 4μs and 3μs respectively.
- Output Type: Transistor, Photovoltaic
- Packaging: Tube
- Standard Package: 2,000
- Forward Current (If): 50 mA
- Forward Voltage (Vf): 1.2V
- Rise/Fall Time: 4μs / 3μs
- Current Output/Channel: 50mA
- Number of Channels: 1
- Voltage Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Maximum Output Voltage: 80V
- Vce Saturation (Max): 200mV
- Current Transfer Ratio (Max): 600% @ 5mA
- Mounting Type: Through Hole
- Package/Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: 4-DIP
- Temperature Range: -30°C to 100°C
- ECCN: Obsolete
- Status: Obsolete
