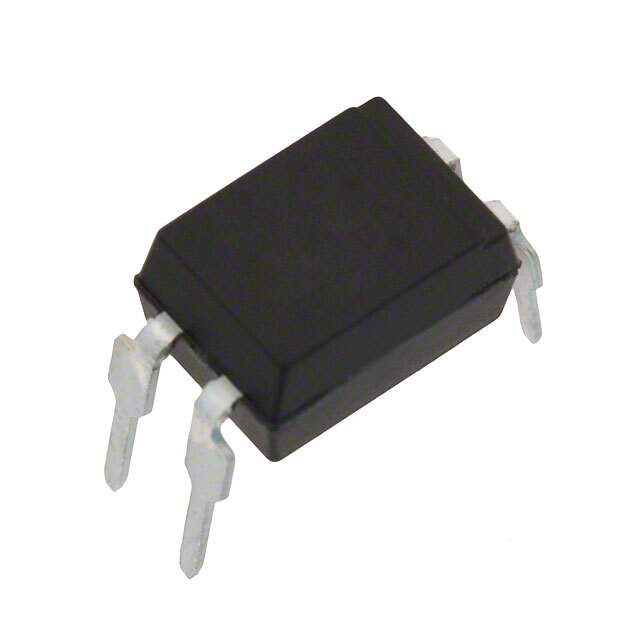

PC851XJ0000F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Features Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Manufacturer Sharp Microelectronics
Package Tube
Part Status Obsolete
Operating Temperature Range -25°C ~ 100°C
Mounting Through Hole
Package 4-DIP (0.300", 7.62mm)
Case / Package 4-DIP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930063-PC851XJ0000F
Ultra Librarian 3D Model Ultra Librarian PC851XJ0000F CAD Model

Description

The Sharp Microelectronics 930063-PC851XJ0000F is an optoisolator transistor output component that features a 5000Vrms rating and 1 channel. It is packaged in a 4-DIP tube and can operate in temperatures ranging from -25°C to 100°C.

  • Voltage Rating: 5000Vrms
  • Channels: 1 channel
  • Package: 4-DIP tube
  • Operating Temperature: -25°C to 100°C
  • Category: isolator
  • ECCN: EAR99
  • Status: obsolete
  • Popularity: remains popular
  • Supply and Demand Status: balanced
  • Quantity per package: 100 units
  • REACH: REACH unaffected
  • HTSUS code: 8541.40.8000
