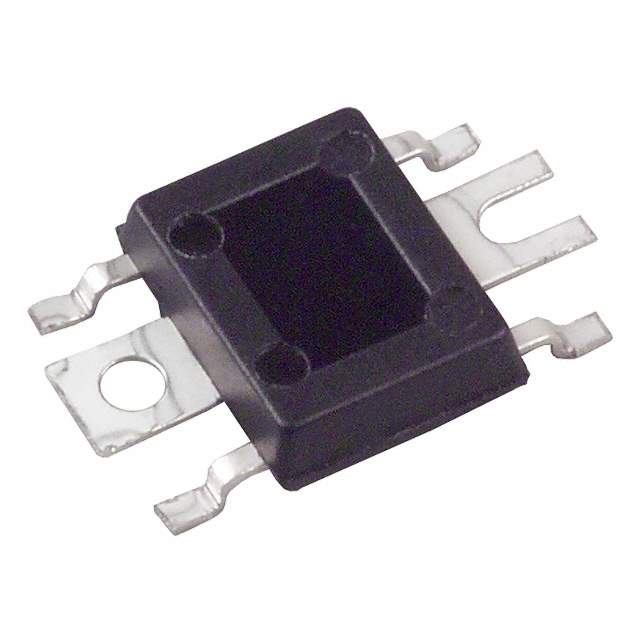

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Wavelength 940nm
Spectral Range 700nm to 1200nm
Responsivity @ nm 0.5 A/W @ 940nm
Response Time 5μs
Voltage - DC Reverse (Vr) (Max) 30V
Current - Dark (Typ) 2nA
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Win Source Part Number 045664-PD3122FE000F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PD3122FE000F CAD Model

Description

This electronic component is manufactured by Sharp Microelectronics and has the Win Source Part Number 045664-PD3122FE000F.

  • Type: sensor/transducer
  • Response Time: 5μs
  • Mounting: SMD (SMT) mounting
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Wavelength: 940nm
  • Responsivity @ nm: 0.5 A/W @ 940nm
  • Current - Dark (typ): 2nA
  • Categories: Sensors, Transducers
  • Status: obsolete (EOL)
  • Temperature Range - Operating: between -25°C to 85°C
  • Supply and Demand Status: limited
