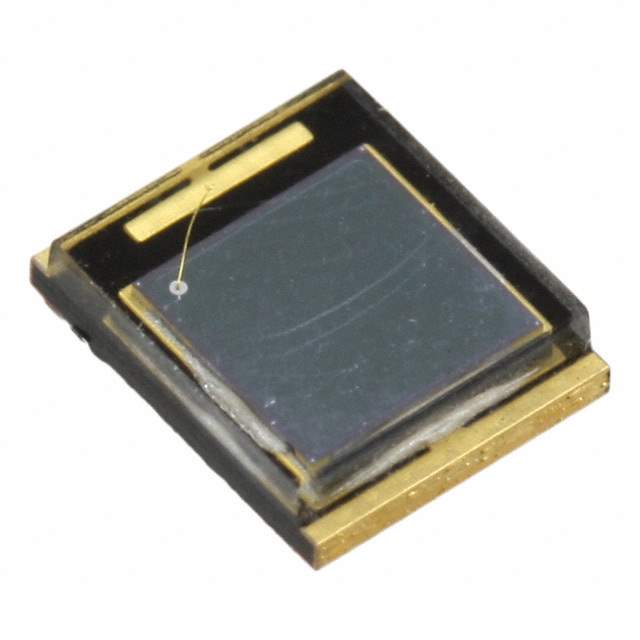

PDB-C171SM Real Image
Same model may have multiple batches, images only for reference.

PDB-C171SM

Part No PDB-C171SM
Manufacturer Advanced Photonix, Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 660NM 2SMD / Photodiode 660nm 100ns 130° 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Advanced Photonix
Package Tape & Reel
Wavelength 660nm
Color - Enhanced Blue
Spectral Range 400nm ~ 1050nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 2nA
Active Area 7.67mm2
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Base Product Number PDB-C171
Standard Package 1,500
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1337704-PDB-C171SM
Ultra Librarian 3D Model Ultra Librarian PDB-C171SM CAD Model

Description

The PDB-C171SM is a PIN photodiode from Advanced Photonix.

  • Application: Optical sensing applications
  • Response Time: 100ns
  • Viewing Angle: 130°
  • Spectral Range: 400nm to 1050nm
  • Color: Blue Enhanced
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 80°C
  • Voltage Rating: 60V
  • MSL Level: 4 (72 Hours)
  • ECCN: EAR99
