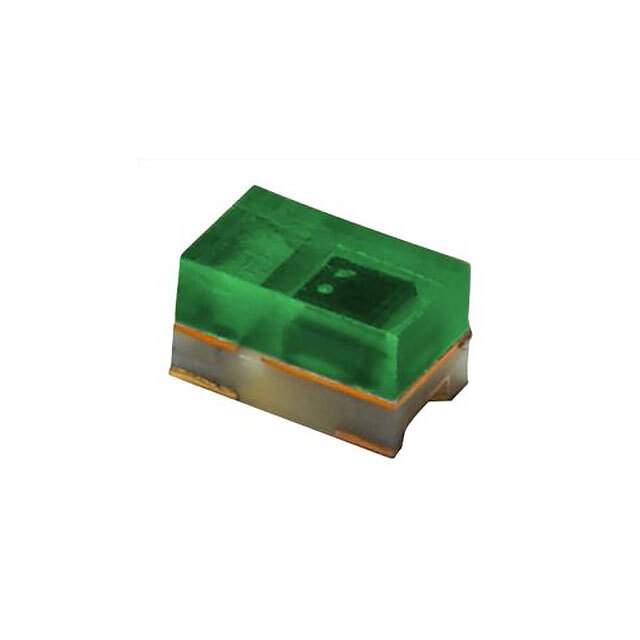

TEMD6200FX01 Real Image
Same model may have multiple batches, images only for reference.

TEMD6200FX01

Part No TEMD6200FX01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 540NM 0805  /  Photodiode 540nm 150ns 120°
Datasheet
TEMD6200FX01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Wavelength 540nm
Spectral Range 430nm ~ 610nm
Diode Type PIN
Response Time 150ns
Voltage - DC Reverse (Vr) (Max) 16 V
Current - Dark (Typ) 100pA
Active Area 0.27mm2
Viewing Angle 120°
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Base Product Number TEMD6200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Other Names TEMD6200FX01-ND,TEMD6200FX01GITR,751-1503-2,751-1503-1,751-1503-6,TEMD6200FX01GICT-ND,TEMD6200FX01GITR-ND,TEMD6200FX01GICT
Standard Package 3,000
Win Source Part Number 1022398-TEMD6200FX01
Ultra Librarian 3D Model Ultra Librarian TEMD6200FX01 CAD Model

Description

The Vishay TEMD6200FX01 is a photodiode sensor that is designed for use in a wide range of applications from Vishay.

  • Response Time: 150ns
  • Standard Package: 3,000
  • Operating Temperature: -40°C to 100°C
  • Viewing Angle: 120°
  • Wavelength: 540nm
  • Diode Type: PIN
  • Voltage DC Reverse (Vr): 16V
  • Series: Automotive, AEC-Q101
  • ECCN: EAR99 compliant
  • REACH: No Restrictions
  • MSL Level: 3 (168 Hours) compliant
