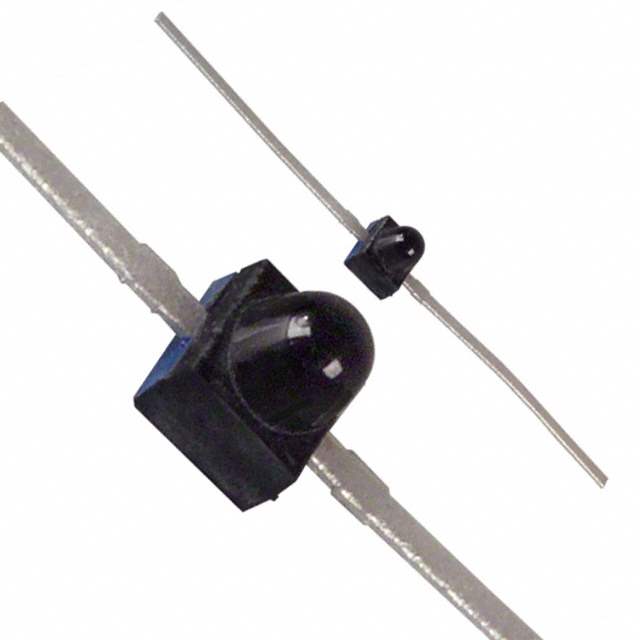

HSDL-5420 Real Image
Same model may have multiple batches, images only for reference.

HSDL-5420

Part No HSDL-5420
Manufacturer Lite-On Inc.
Catalog Optical Sensors - Photodiodes
Description Photodiode PIN Chip 875nm 0.5A/W Sensitivity 2-Pin SMT / PHOTODIODE IR 2X2MM DOME ZBEND
Datasheet
HSDL-5420 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Wavelength 875nm
Spectral Range 770nm to 1000nm
Diode Type PIN
Response Time 7.5ns
Voltage - DC Reverse (Vr) (Max) 40V
Current - Dark (Typ) 1nA
Active Area 0.15mm2
Viewing Angle 56°
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 2-SMD, Z-Bend
Win Source Part Number 068201-HSDL-5420
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 500
Family Name HSDL-5420
Introduction Date June 08, 2006
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian HSDL-5420 CAD Model

Description

The HSDL-5420 is a PIN diode from Lite-On Inc. It has a reverse voltage of 40V and a response time of 7.5ns. The diode is designed for use in sensors and transducers and has a viewing angle of 56°. It is mounted on a SMD (SMT) and has a high popularity rating. The supply and demand status is currently balanced, and each package contains 500 pieces.
