Same model may have multiple batches, images only for reference.

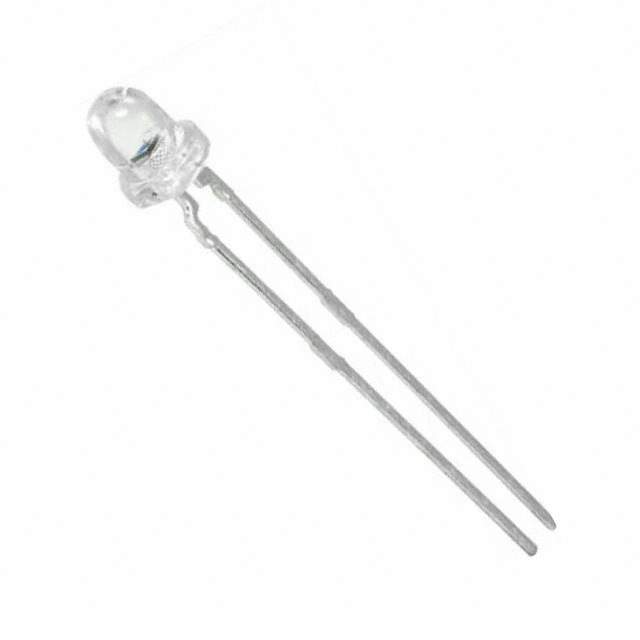

TEFD4300 Real Image
Same model may have multiple batches, images only for reference.

TEFD4300

Part No TEFD4300
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description Silicon PIN Photodiode | SENSOR PHOTODIODE 950NM RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Wavelength 950nm
Spectral Range 350nm ~ 1120nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Maximum) 10V
Current - Dark 150pA
Viewing Angle 40°
Temperature Range - Operating -40°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package Radial
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Win Source Part Number 1266712-TEFD4300
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TEFD4300 CAD Model

Description

The TEFD4300 is a PIN diode manufactured by Vishay Semiconductor Opto Division.

  • Package / Case: Radial
  • Response Time: 100ns
  • Diode Type: PIN
  • Viewing Angle: 40°
  • Wavelength: 350nm ~ 1120nm
  • For Use With: Sensors, Transducers
  • Operating Temperature: -40°C ~ 100°C
  • Voltage - DC Reverse (Vr) (Max): 10V
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Packaging: Bulk
  • Manufacturer Package: 5,000
  • MSL Level: 1 (Unlimited)
  • Current - Dark (Id) (Max): 150pA
