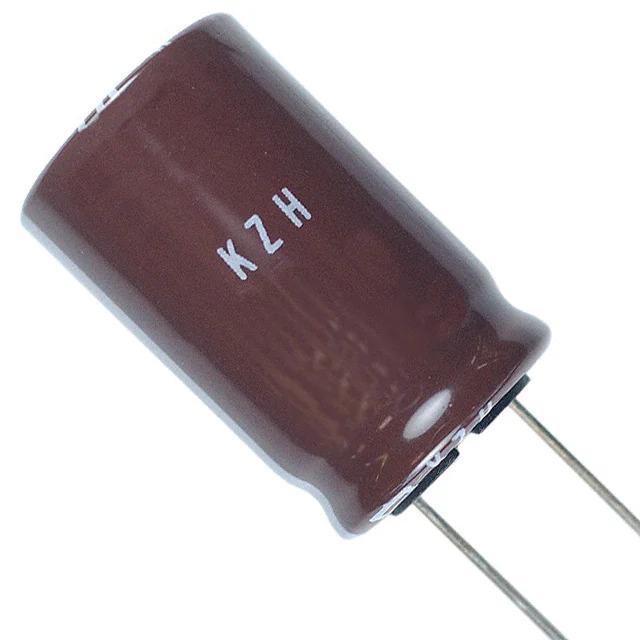

EKZH160ELL222MK20S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZH160ELL222MK20S

Part No EKZH160ELL222MK20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 16V RADIAL / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZH
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.86 A @ 120 Hz
Ripple Current @ High Frequency 2.48 A @ 100 kHz
Impedance 17 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358035-EKZH160ELL222MK20S
Ultra Librarian 3D Model Ultra Librarian EKZH160ELL222MK20S CAD Model

Description

The 1358035-EKZH160ELL222MK20S is an aluminum electrolytic capacitor from United Chemi-Con. It belongs to the KZH series and has a capacitance of 2200 μF with a voltage rating of 16 V.

  • Series: KZH
  • Capacitance: 2200 μF
  • Voltage - Rated: 16 V
  • Applications: General Purpose
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 6000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 1.86 A @ 120 Hz
  • Ripple Current @ High Frequency: 2.48 A @ 100 kHz
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height - Seated (Max): 0.846" (21.50mm)
  • REACH Status: Unaffected
