Same model may have multiple batches, images only for reference.

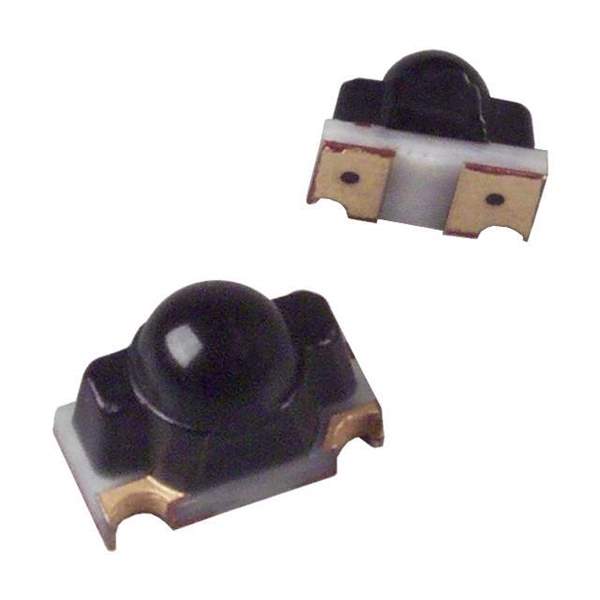

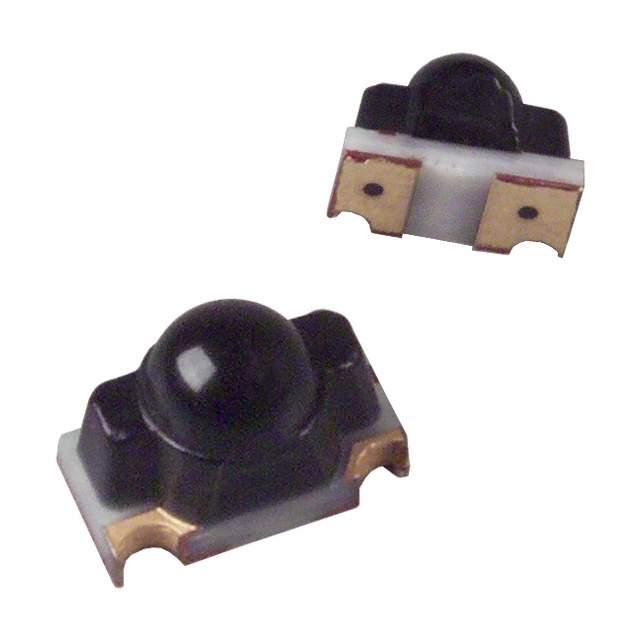

PT100MF0MP1 Real Image
Same model may have multiple batches, images only for reference.

PT100MF0MP1

Part No PT100MF0MP1
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Phototransistors
Description PHOTO TRANS BLACK LENS 910NM SMD
Datasheet
PT100MF0MP1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 910nm
Viewing Angle 30°
Maximum Power Dissipation 75mW
Mounting SMD (SMT)
Orientation Universal
Temperature Range - Operating -30°C to 85°C (TA)
Dimension 2-SMD, No Lead
Win Source Part Number 1090469-PT100MF0MP1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT100MF0MP1 CAD Model

Description

The Sharp Microelectronics PT100MF0MP1 is an obsolete (EOL) sensor/transducer that has a viewing angle of 30° and a wavelength of 910nm. Bold the product name (e.g., BAV99S,135 → PT100MF0MP1) and manufacturer (e.g., Nexperia USA Inc. → Sharp Microelectronics).

  • Viewing Angle: 30°
  • Wavelength: 910nm
  • Maximum Current Collector: 20mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 35V
  • Maximum Power Dissipation: 75mW
  • Mounting: SMD (SMT)
  • Dimension: 2-SMD, no lead
