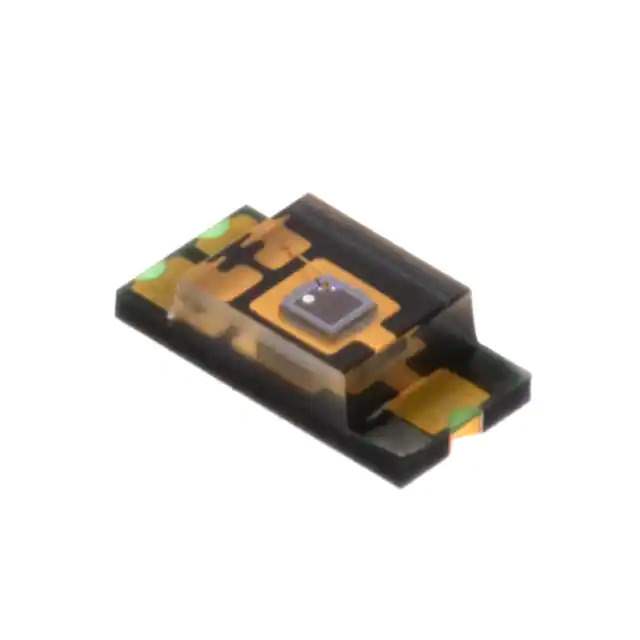

TEMT6000X01 Real Image
Same model may have multiple batches, images only for reference.

TEMT6000X01

Part No TEMT6000X01
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 570NM TOP VIEW 1206
Datasheet
TEMT6000X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Vishay
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Voltage - Collector Emitter Breakdown (Max) 6 V
Current - Collector (Ic) (Max) 20 mA
Current - Dark (Id) (Max) 50 nA
Wavelength 570nm
Viewing Angle 120°
Power - Max 100 mW
Mounting Type Surface Mount
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case 1206 (3216 Metric)
Base Product Number TEMT6000
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 840149-TEMT6000X01
Ultra Librarian 3D Model Ultra Librarian TEMT6000X01 CAD Model

Description

The TEMT6000X01 is an optical sensor phototransistor designed for automotive applications.

  • AEC-Q101 series: Yes
  • Package: surface mount
  • Maximum power rating: 100 mW
  • Collector-emitter breakdown voltage: 6 V
  • Maximum collector current: 20 mA
  • Dark current: 50 nA
  • Viewing angle: 120 degrees
  • Wavelength: 570 nm
