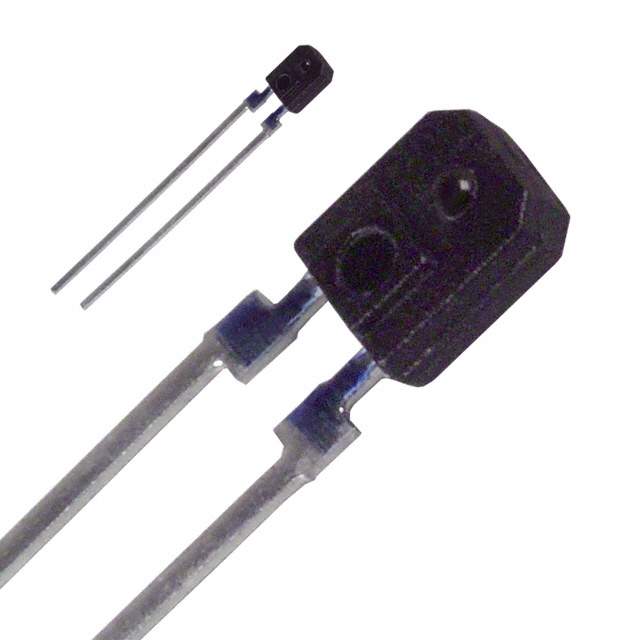

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 1 mA
Wavelength 860nm
Viewing Angle 70°
Power - Max 75 mW
Mounting Type Through Hole
Orientation Side View
Temperature Range - Operating -25°C ~ 85°C (TA)
Package / Case Radial
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Other Names 425-1015-5
Standard Package 50
Win Source Part Number 981165-PT4810F
Ultra Librarian 3D Model Ultra Librarian PT4810F CAD Model

Description

This Sharp Microelectronics phototransistor is an optical sensor with a side view orientation.

  • Type: Optical Sensor, Phototransistor
  • Orientation: Side View
  • Maximum Power: 75 mW
  • Voltage Collector Emitter Breakdown: 35V
  • Current Collector: 50mA (Maximum)
  • Viewing Angle: 70°
  • Wavelength: 860nm
  • Current Dark: 1 mA (Maximum)
  • Mounting: Through Hole
  • Package/Case: Radial
  • Temperature Range: -25°C to 85°C (TA)
  • ECCN: EAR99
  • Status: Obsolete
  • RoHS: Non-Compliant
