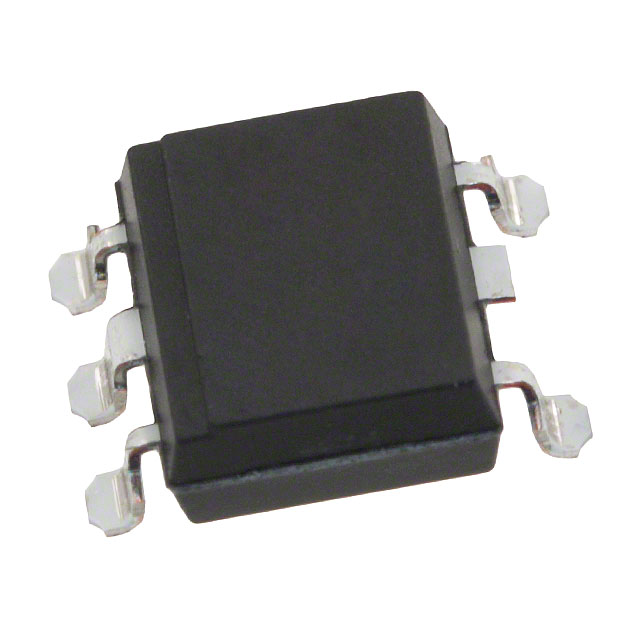

S21ME3 Sharp Microelectronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Cut Reel
Status Obsolete(EOL)
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 7mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 40μs
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals BSI, DEMKO, SEMKO, UR
Win Source Part Number 062999-S21ME3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S21ME3 CAD Model

Description

The S21ME3 is an isolator component from Sharp Microelectronics that is designed to provide high-quality performance.

  • Packaging: Cut Reel
  • Approvals: BSI, DEMKO, SEMKO, UR
  • Output Type: Triac
  • Forward Voltage: 1.2V
  • Voltage-Off State: 600V
  • Current-On State (It (RMS)) (Max): 100mA
  • Channel: One
  • Isolation Voltage: 5000Vrms
  • Status: Obsolete (EOL)
  • Temperature Range: -30°C to 100°C
