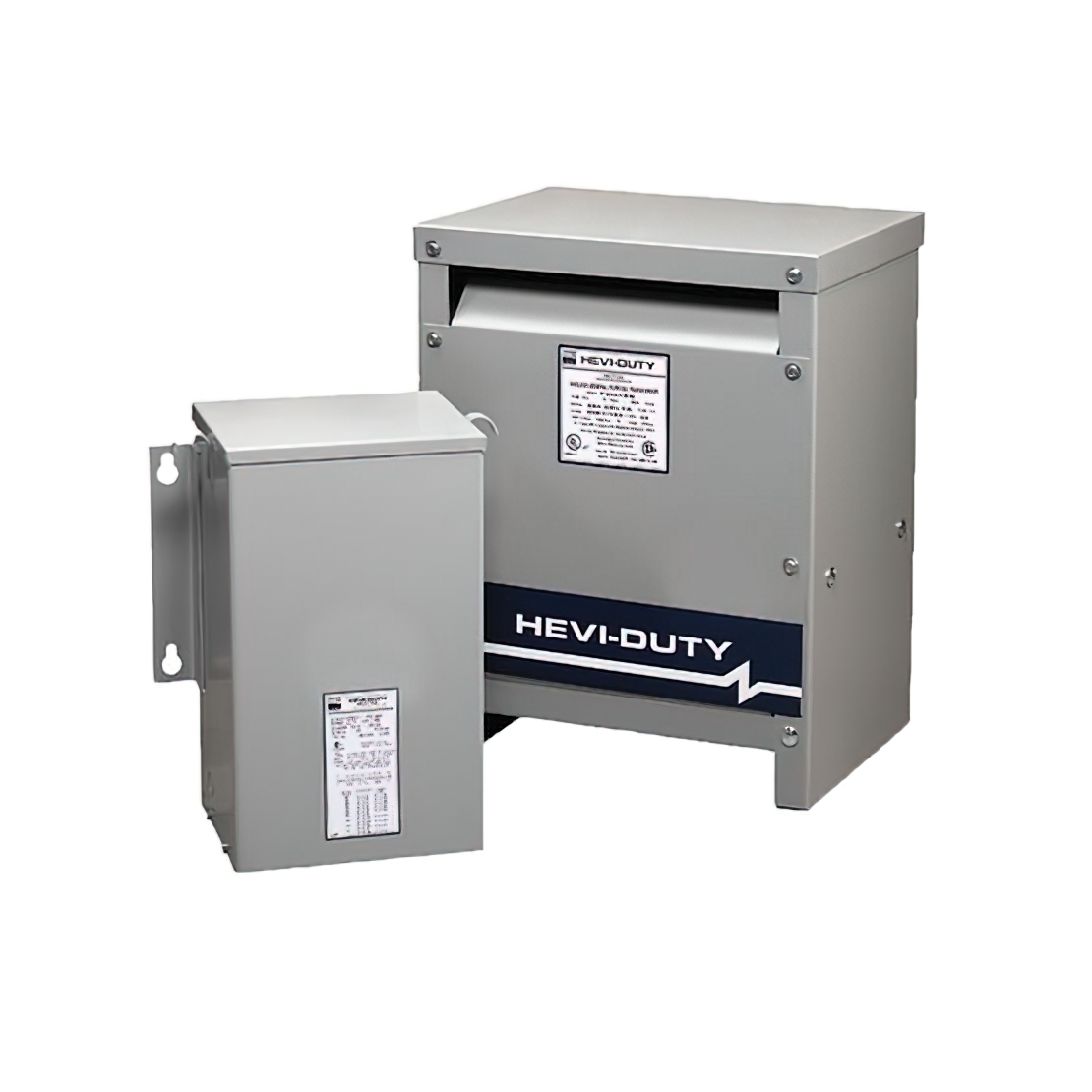

CE1000TH SolaHD – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Voltage - Secondary (Full Load) 120V, 240V
Primary Winding(s) Single, Multiple Taps
Center Tap Yes
Power - Max 1000VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 162.10mm L x 152.40mm W
Height - Seated (Max) 143.00mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545120-CE1000TH
Ultra Librarian 3D Model Ultra Librarian CE1000TH CAD Model
