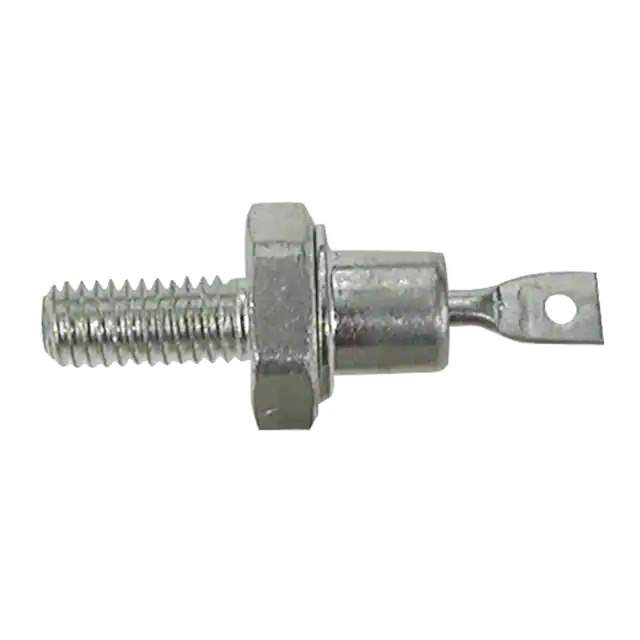

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 25 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 60 V
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 540653-25FR60
Ultra Librarian 3D Model Ultra Librarian 25FR60 CAD Model

Description

The 540653-25FR60 is a standard recovery diode designed for rectification applications.

  • Maximum Reverse Voltage: 60 V
  • Average Rectified Current: 25A
  • Forward Voltage: 1.2V @ 25A
  • Reverse Leakage Current: 10μA @ the maximum reverse voltage
  • Mounting Type: Stud Mount
  • Package: DO-203AA, DO-4, Stud
  • Operating Temperature Range: -65°C to 150°C
  • Manufacturer: Solid State Inc.
  • Product Status: Active
