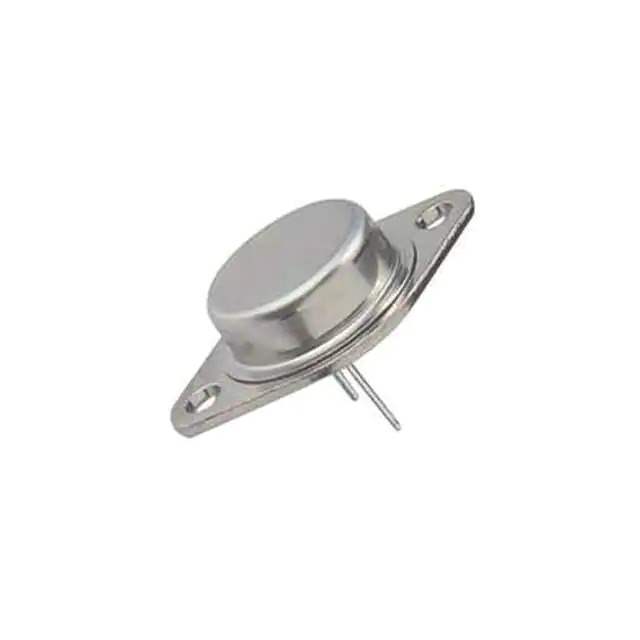

MJ10022 Real Image
Same model may have multiple batches, images only for reference.

MJ10022

Part No MJ10022
Manufacturer Solid State Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 350V 40A TO3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Solid State Inc.
Series SWITCHMODE
Package Bulk
Product Status Active
Transistor Type NPN - Darlington
Current - Collector (Ic) (Max) 40 A
Voltage - Collector Emitter Breakdown (Max) 350 V
Vce Saturation (Max) @ Ib, Ic 5V @ 5A, 40A
Current - Collector Cutoff (Max) 250µA
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 10A, 5V
Power - Max 250 W
Temperature Range - Operating -65°C ~ 200°C (TJ)
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Supplier Device Package TO-3
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 640855-MJ10022
Ultra Librarian 3D Model Ultra Librarian MJ10022 CAD Model

Description

The MJ10022 is an NPN Darlington transistor designed for high power switching applications.

  • Type: NPN Darlington Transistor
  • Application: High Power Switching
  • Power Rating: 250W
  • Collector Current (Max): 40A
  • Collector-Emitter Voltage (Breakdown): 350V
  • Package: TO-204AA/TO-3
  • Mounting: Through-Hole
  • Vce Saturation: 5V @ 40A
  • DC Current Gain (hFE): 60 @ 10A, 5V
  • Commonly Used In: Power supplies, motor control circuits, and high voltage switching applications
  • Status: Active
  • Packaging: Bulk
  • Standard Package: 10 pcs
