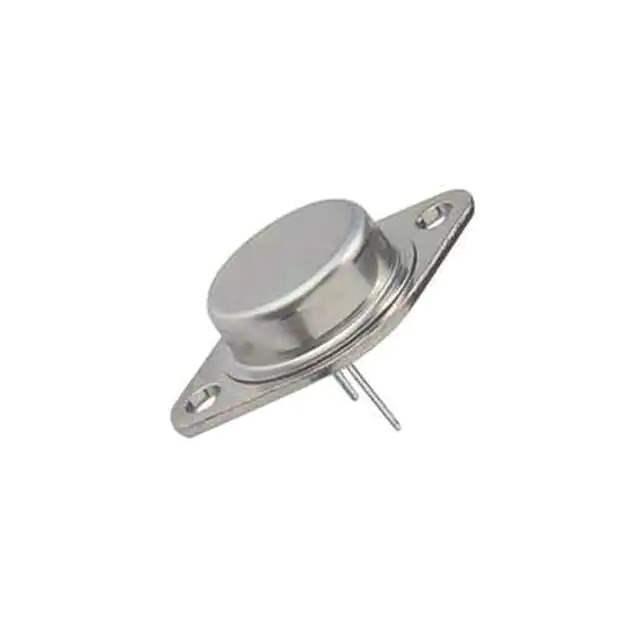

MJ10025 Real Image
Same model may have multiple batches, images only for reference.

MJ10025

Part No MJ10025
Manufacturer Solid State Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 850V 20A TO3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Solid State Inc.
Series SWITCHMODE
Package Bulk
Product Status Active
Transistor Type NPN - Darlington
Current - Collector (Ic) (Max) 20 A
Voltage - Collector Emitter Breakdown (Max) 850 V
Vce Saturation (Max) @ Ib, Ic 5V @ 5A, 20A
Current - Collector Cutoff (Max) 250µA
DC Current Gain (hFE) (Min) @ Ic, Vce 50 @ 5A, 5V
Power - Max 250 W
Temperature Range - Operating -65°C ~ 200°C (TJ)
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Supplier Device Package TO-3
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 640857-MJ10025
Ultra Librarian 3D Model Ultra Librarian MJ10025 CAD Model

Description

The MJ10025 is a NPN Darlington transistor designed for high power switching applications.

  • Transistor Type: NPN Darlington
  • Application: High Power Switching
  • Maximum Power Rating: 250 W
  • Voltage Breakdown: 850 V
  • Maximum Collector Current: 20 A
  • Vce Saturation: 5V @ 5A and 20A
  • DC Current Gain (hFE): 50 @ 5A and 5V
  • Series: SWITCHMODE
  • Package: TO-204AA and TO-3
  • Temperature Range: -65°C to 200°C
  • Product Status: Active
  • Supplier: Solid State Inc.
