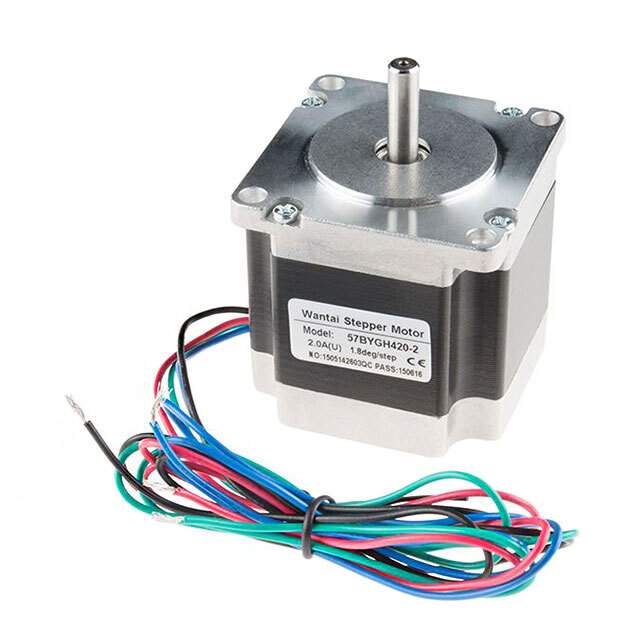

ROB-13656 Real Image
Same model may have multiple batches, images only for reference.

ROB-13656

Part No ROB-13656
Manufacturer SparkFun Electronics
Catalog Stepper Motors
Description STEP MOTOR HYBRID BIPOLAR 3.2V  /  Bipolar Stepper Motor Hybrid Frame Size 23 200.0 Step 2 A 3.2VDC
Datasheet
ROB-13656 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Motors, Solenoids, Driver Boards/Modules>Stepper Motors
Mfr SparkFun Electronics
Package Bulk
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.2VDC
Current Rating (Amps) 2 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 125 / 882.7
Dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size 23
Diameter - Shaft 0.250" (6.35mm)
Length - Shaft and Bearing 0.827" (21.00mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Coil Resistance 1.6 Ohms
Features Round Shaft
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8501.10.6060
Other Names 1568-1376,ROB-13656-ND
Standard Package 1
Win Source Part Number 1120186-ROB-13656
Ultra Librarian 3D Model Ultra Librarian ROB-13656 CAD Model

Description

The ROB-13656 is a hybrid type stepper motor from SparkFun Electronics.

  • Shaft Type: round
  • Termination Style: wire leads
  • Holding Torque: 125 oz-in/882.7 mNm
  • Step Angle: 1.8°
  • NEMA Frame Size: 23
  • Voltage Rating: 3.2VDC
  • Coil Type: bipolar
  • Coil Resistance: 1.6 Ohms
  • Dimension: 2.220" x 2.220" (56.40mm x 56.40mm)
  • Mounting Hole Spacing: 1.856" (47.14mm)
  • Accuracy: ±5%
  • Steps per Revolution: 200
  • Packaging: bulk
  • Standard Package: 1
