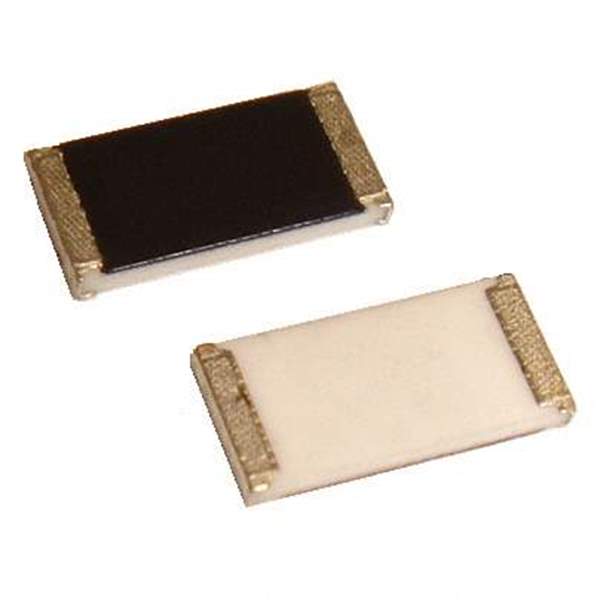

CSRN2010FK50L0 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRN
Package Tape & Reel
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Dimension 0.197" L x 0.097" W (5.00mm x 2.45mm)
Height - Seated (Max) 0.030" (0.75mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names CSRN10.05FITR,CSRN10.05FITR-ND,CSRN2010FK50L0CT,CSRN1-0.05FTR,CSRN10.051%ITR-ND,CSRN1-0.05FDKR-ND,CSRN 1 0.05 1% I,CSRN10.051%ICT,CSRN2010FK50L0DKR,CSRN10.05FICT-ND,CSRN1-0.05FTR-ND,CSRN1-0.05FDKR,CSRN1-0.05FCT-ND,CSRN10.051%IDKR,CSRN10.05FIDKR,CSRN10.051%IDKR-ND,CSRN10.05FIDKR-ND,CSRN10.051%ICT-ND,CSRN10.05FICT,CSRN1-0.05FCT,CSRN2010FK50L0TR,CSRN10.051%ITR
Standard Package 1,000
Win Source Part Number 1114795-CSRN2010FK50L0
Ultra Librarian 3D Model Ultra Librarian CSRN2010FK50L0 CAD Model

Description

The CSRN2010FK50L0 is a chip resistor - surface mount electronic component manufactured by Stackpole Electronics Inc.

  • Resistor Type: Thick Film
  • Power Rating: 1W
  • Resistance: 50 mOhms
  • Temperature Coefficient: ±250ppm/°C
  • Tolerance: ±1%
  • Package/Case: 2010 (5025 Metric)
  • Supplier Device Package: 2010
  • REACH: Unaffected
  • ECCN: EAR99
