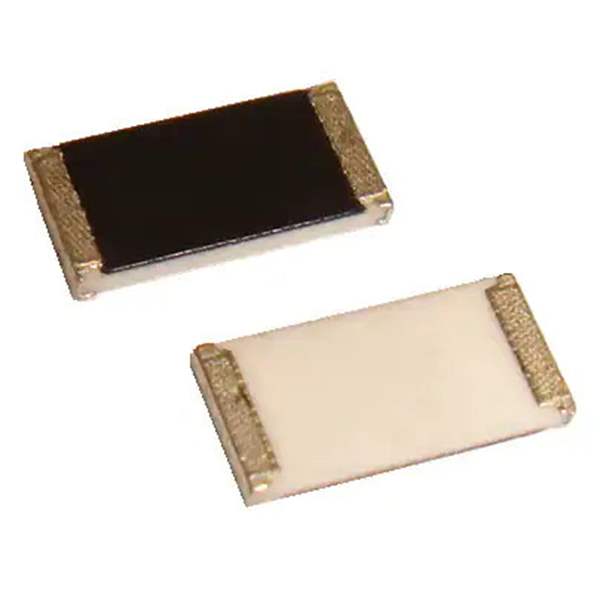

CSRN2512FKR500 Stackpole Electronics Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRN
Package Tape & Reel
Product Status Active
Resistance 500 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.124" W (6.35mm x 3.15mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375242-CSRN2512FKR500
Ultra Librarian 3D Model Ultra Librarian CSRN2512FKR500 CAD Model

Description

The Stackpole Electronics Inc CSRN2512FKR500 is a chip resistor designed for surface mount applications.

  • Series: CSRN
  • Package / Case: 2512 (6432 Metric)
  • Resistance: 500 mOhms
  • Power (Watts): 2W
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • AEC-Q200: Yes
  • Type: Current Sense
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.250" L x 0.124" W (6.35mm x 3.15mm)
  • Height - Seated (Max): 0.028" (0.70mm)
