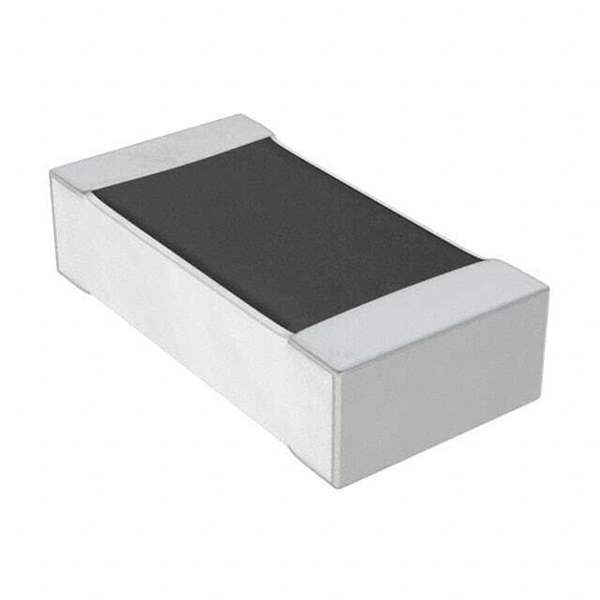

RMCF0603FT560R
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 21 Weeks
Features 560 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200 Thick Film
Manufacturer Stackpole Electronics Inc.
Series RMCF
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 0603 (1608 Metric)
Case / Package 0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 738-RMCF0603FT560RTR, RMCF1/165601%R-ND, 738-RMCF0603FT560RDKR, RMCF1/16560FR-ND, RMCF0603FT560RCT, -RMCF0603FT560RTR, RMCF0603FT560R-ND, -RMCF0603FT560RCT, RMCF0603FT560RCT-ND, RMCF1/165601%R, RMCF0603FT560RTR-ND, RMCF1/16560FR, RMCF0603FT560RTR, 738-RMCF0603FT560RCT, RMCF 1/16 560 1% R
Quantity per package 5000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891985-RMCF0603FT560R
Ultra Librarian 3D Model Ultra Librarian RMCF0603FT560R CAD Model

Description

The RMCF0603FT560R is a high popularity electronic component manufactured by Stackpole Electronics Inc.

  • Category: Resistors
  • Series: RMCF
  • Resistance: 560 Ohms ±1%
  • Power Rating: 0.1W, 1/10W
  • Type: Chip Resistor
  • Package Size: 0603 (1608 Metric)
  • Application: Automotive AEC-Q200 thick film
  • Package: Reel of 5000
  • Operating Temperature: -55°C ~ 155°C
  • REACH: Unaffected
  • Estimated Production Lead Time: 21 weeks
