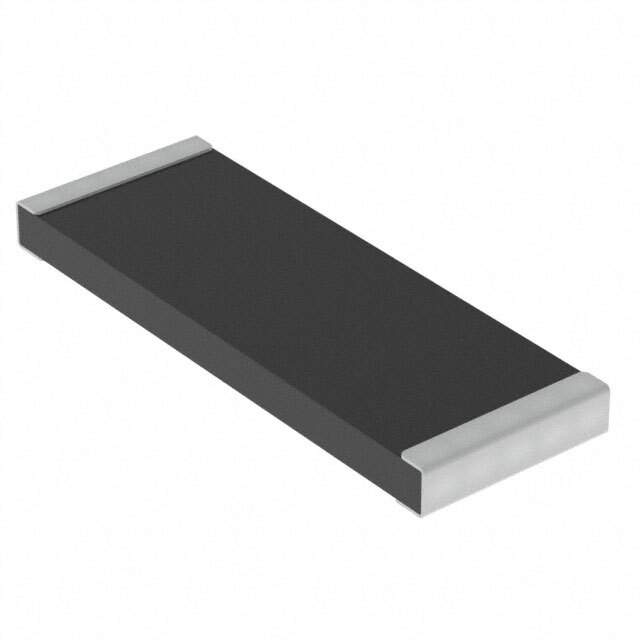

RMCS0805FT806R Real Image
Same model may have multiple batches, images only for reference.

RMCS0805FT806R

Part No RMCS0805FT806R
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES, AS, 0805, 806 OHM, 1%, 0.12  /  806 Ohms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur Thick Film
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RMCS
Package Tape & Reel
Resistance 806 Ohms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
ECCN EAR99
HTSUS 8533.21.0030
Other Names 738-RMCS0805FT806RCT,738-RMCS0805FT806RDKR,738-RMCS0805FT806RTR
Standard Package 5,000
Win Source Part Number 1153461-RMCS0805FT806R
Ultra Librarian 3D Model Ultra Librarian RMCS0805FT806R CAD Model

Description

The RMCS0805FT806R is a chip resistor that belongs to the RMCS series and is designed to be surface-mounted. It features anti-sulfur properties and comes in tape and reel packaging.

  • Series: RMCS
  • Properties: Anti-sulfur
  • Packaging: Tape and reel
  • Height: 0.026 inches
  • Standard Package: 5,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W
  • Composition: Thick film
  • Terminations: Two
  • Resistance: 806 Ohms
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • Operating Temperature: -55°C to 155°C
  • Dimension: 0.079 inches L x 0.049 inches W (2.00mm x 1.25mm)
  • Manufacturer: Stackpole Electronics Inc.
