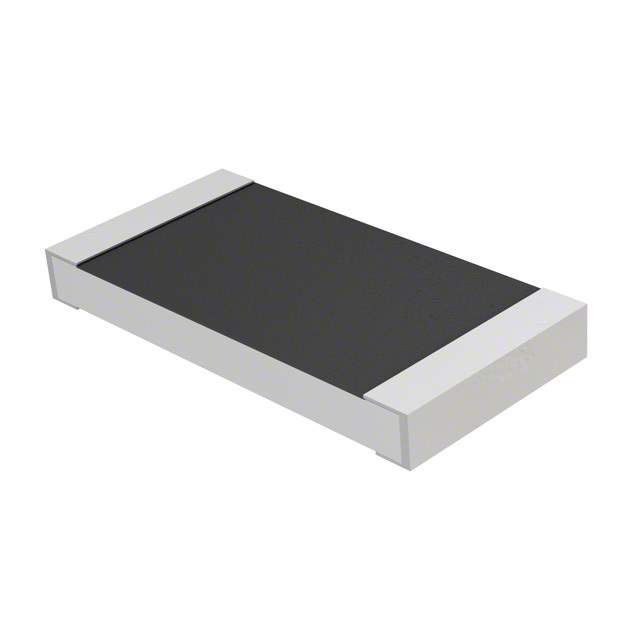

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Stackpole Electronics Inc
Packaging Reel - TR
Resistance 150 mOhms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2010 (5025 Metric)
Supplier Device Package 2010
Ratings AEC-Q200
Size / Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RMCF2010JTR150TR,RMCF2010JCT150CT,RMCF2010JTR150TR-ND,-850-RMCF2010JTR150TR,-RMCF2010JCT150CT-ND,-850-RMCF2010JTR150CT,738-RMCF2010JTR150CT,738-RMCF2010JTR150TR,RMCF2010JCT150CT-ND,-RMCF2010JTR150TR,-RMCF2010JTR150TR-ND,-RMCF2010JCT150CT
Standard Package 4,000
Win Source Part Number 1326495-RMCF2010JTR150
Ultra Librarian 3D Model Ultra Librarian RMCF2010JTR150 CAD Model

Description

The Stackpole Electronics Inc RMCF2010JTR150 is a surface mount chip resistor that is ideally suited for use in automotive applications.

  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Resistance: 150 mOhms
  • Power Rating: 0.75W
  • Composition: Thick film
  • Number of Terminations: 2
  • Package Size: 2010 (5025 Metric)
  • Operating Temperature Range: -55°C to 155°C
  • Rating: AEC-Q200
  • Standard Package: 4,000
  • Failure Rate: Not specified
  • Compliance: ROHS3
  • REACH: Unaffected
