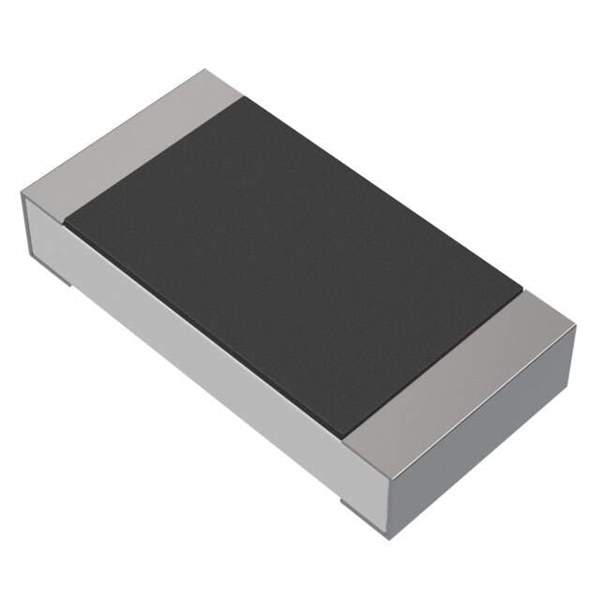

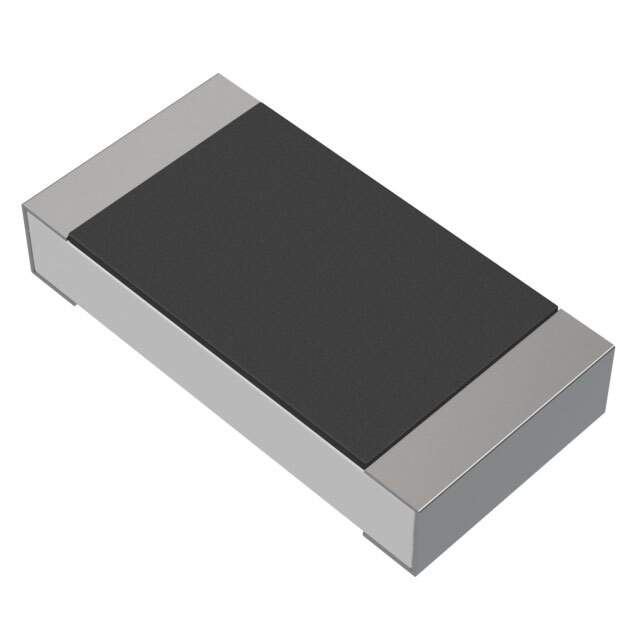

RMCS1206FT7K50 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RMCS
Package Tape & Reel
Resistance 7.5 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338160-RMCS1206FT7K50
Ultra Librarian 3D Model Ultra Librarian RMCS1206FT7K50 CAD Model

Description

The RMCS1206FT7K50 is a chip resistor with a thick film composition.

  • Resistance: 7.5 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Package / Case: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Height: 0.026" (0.65mm)
  • Temperature Range: -55°C ~ 155°C
  • Package: Tape & Reel
  • Standard Package: 5,000
  • Category: Resistors - Chip Resistor - Surface Mount
  • MSL Level: 1 (Unlimited)
