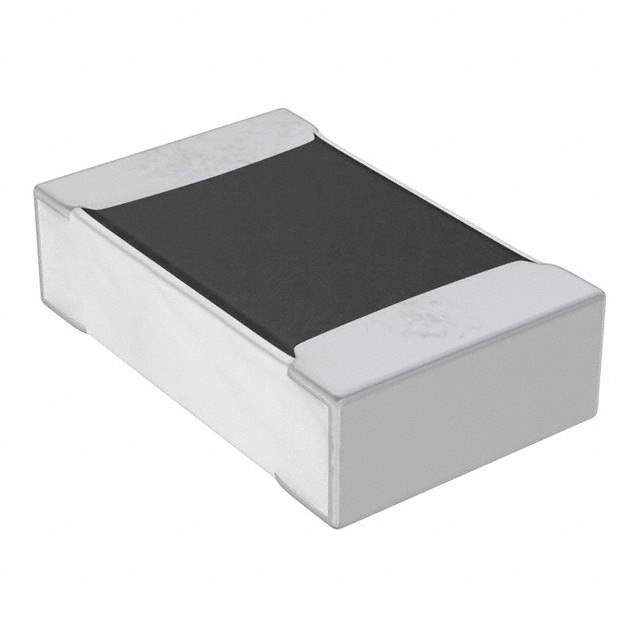

RNCP1206FTD150R Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCP
Package Tape & Reel
Resistance 150 Ohms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.122" L x 0.059" W (3.10mm x 1.50mm)
Height - Seated (Max) 0.025" (0.65mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1352047-RNCP1206FTD150R
Ultra Librarian 3D Model Ultra Librarian RNCP1206FTD150R CAD Model

Description

The 1352047-RNCP1206FTD150R is a surface mount thin film chip resistor with a resistance of 150 Ohms and a power rating of 0.5W.

  • Resistance: 150 Ohms
  • Power (Watts): 0.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Series: RNCP
  • Features: Anti-Sulfur
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.122" L x 0.059" W (3.10mm x 1.50mm)
  • Height - Seated (Max): 0.025" (0.65mm)
  • Package / Case: 1206 (3216 Metric)
  • Number of Terminations: 2
  • Operating Temperature: -55°C ~ 155°C
  • Manufacturer: Stackpole Electronics Inc
