Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 15V, 24V
Minimum Breakdown Voltage 17.1V, 25.4V
Max Clamping Voltage 35V, 50V
Peak Pulse Current(Ippm) 5A, 3A (8/20μs)
Power Dissipation - Pd 160W
Applications Automotive
Capacitance @ Frequency 16pF @ 1MHz
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)

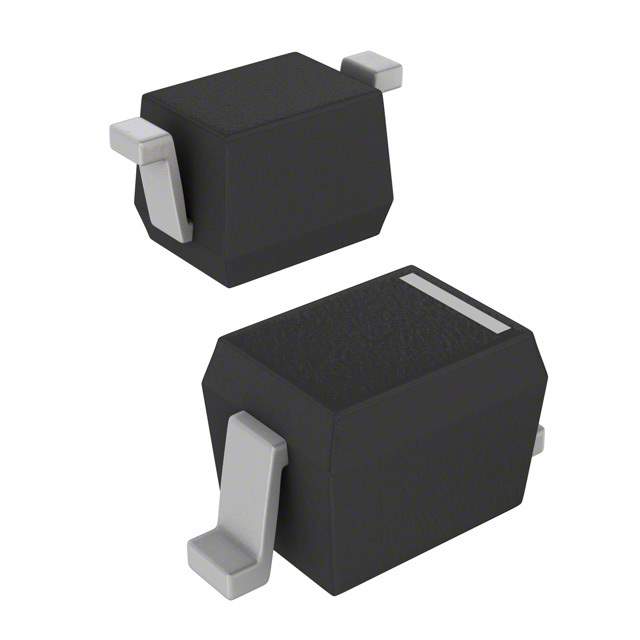

Case / Package SOD-323
Win Source Part Number 173966-AESDLIN1524B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AESDLIN1524B CAD Model

Description

The AESDLIN1524B is a cutting-edge product from STMicroelectronics, a global semiconductor leader known for its innovative and reliable components. This product is a part of the company's extensive lineup of automotive solutions, specifically designed to meet the rigorous standards of the automotive industry.

Key Features

  • High Reliability: The AESDLIN1524B is built to withstand the harsh conditions typical in automotive environments, ensuring long-term reliability and performance.
  • Advanced Communication Protocol: It supports the Local Interconnect Network (LIN) bus, a serial network protocol used for communication between components in vehicles.
  • Low Power Consumption: With an emphasis on energy efficiency, this device is engineered to operate with minimal power, making it ideal for battery-powered applications.
  • Robust Design: The product is designed to handle significant electrical disturbances and temperature variations, which is essential for automotive applications.

Applications

The AESDLIN1524B is primarily used in the automotive sector for a variety of applications, including but not limited to:

  • Body control modules
  • Rain/light sensors
  • Intelligent switches
  • Steering wheel interfaces

Technical Specifications

The AESDLIN1524B boasts a robust set of technical specifications that make it a versatile choice for automotive system designers:

  • Compliance with LIN 2.x and SAE J2602 standards
  • Enhanced electromagnetic compatibility (EMC)
  • Wide operating temperature range suitable for automotive environments
  • Integrated voltage regulator with various output options

STMicroelectronics' commitment to quality and innovation is evident in the AESDLIN1524B. By integrating this product into automotive systems, manufacturers can expect improved communication reliability, efficient power management, and enhanced overall vehicle performance.
