Products specifications

Manufacturer STMicroelectronics
No 256380
Standard Package 1
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA
Speed Small Signal =< 200mA (Io) Any Speed
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 500nA @ 25V
Capacitance @ Vr F 7pF @ 1V 1MHz
Mounting Style Through Hole
Package DO-204AH DO-35 Axial
Manufacturer Device Package DO-35
Operating Temperature - Junction -65°C ~ 125°C
Catalog Schottky Diode
Kits 497-8006A-KIT - KIT SCHOTTKY DIODE 9VALUES 5EA
Win Source Part Number 038705-BAT43
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BAT43
Introduction Date August 19, 1999
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian BAT43 CAD Model

Description

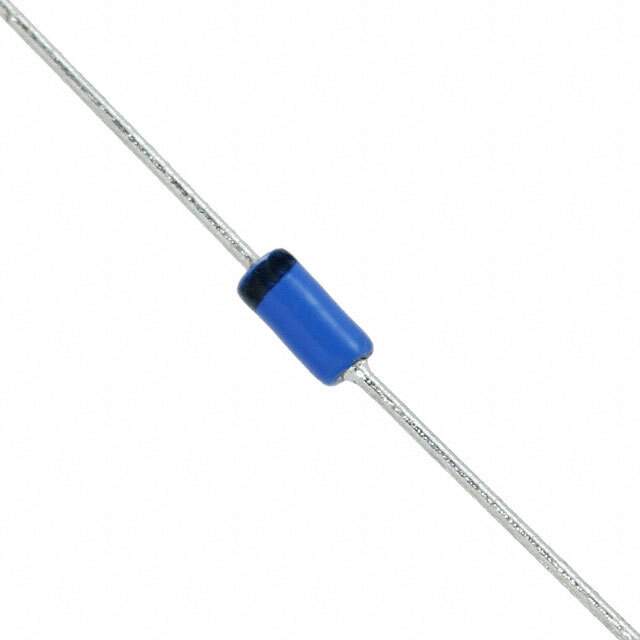

The BAT43 is a small signal Schottky diode highly appreciated for its low forward voltage drop and fast switching capabilities, making it a suitable choice for a wide range of applications. Manufactured by STMicroelectronics, a global semiconductor leader, the BAT43 diode offers excellent performance in a compact, DO-35 package.

Key Features

  • Low Forward Voltage Drop: The BAT43 provides a very low forward voltage drop, typically around 0.38V at 15mA, which enhances energy efficiency in circuits where power loss is critical.
  • Fast Switching Speed: With its fast switching action, this diode is ideal for high-frequency applications, ensuring minimal losses during state changes.
  • Reverse Leakage Current: It has a low reverse leakage current, which is a significant parameter in battery-powered devices, contributing to longer battery life and reliability.
  • High Reliability: STMicroelectronics' commitment to quality ensures that the BAT43 diode provides stable and reliable performance even under varying environmental conditions.
  • Surface Mount and Through-Hole Versions: Available in both surface mount (SOD-123, SOD-323) and through-hole (DO-35) packages, the BAT43 can be used in a variety of PCB designs.

Applications

The versatility of the BAT43 makes it an excellent choice for numerous electronic applications, including:

  • Power supply rectification
  • Energy harvesting systems
  • Protection circuits
  • Switching power supplies
  • High-frequency inverters
  • Signal demodulation

Technical Specifications

Parameter Value Package DO-35 Peak Repetitive Reverse Voltage 30 V Forward Continuous Current 200 mA Power Dissipation 500 mW

The BAT43 is a testament to STMicroelectronics' dedication to providing components that push the boundaries of efficiency and compactness. Its robust design, coupled with its electrical characteristics, make it a top choice for designers looking to optimize their power-sensitive applications.
