Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Gate Trigger (Igt) (Max) 80mA
Voltage - On State (Vtm) (Max) 1.9V
Current - On State (It (AV)) (Max) 32A
Current - On State (It (RMS)) (Max) 50A
Current - Hold (Ih) (Max) 150mA
Current - Off State (Max) 10μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 580A, 610A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole

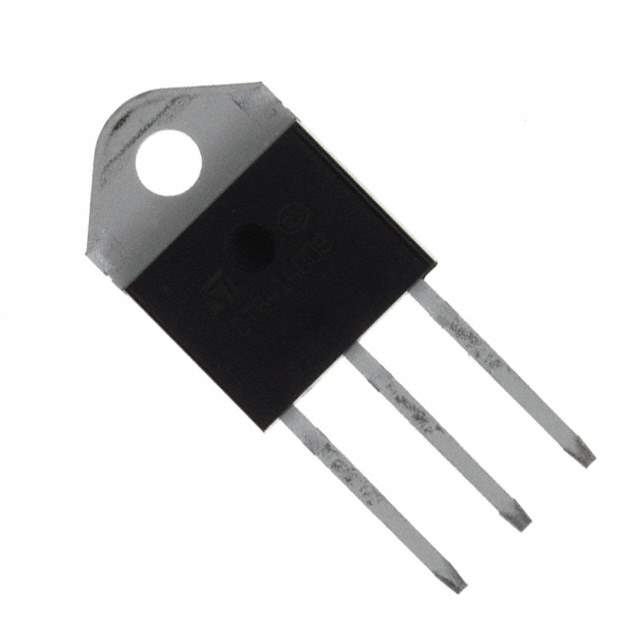

Case / Package TOP3
Win Source Part Number 079746-BTW69-800RG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BTW69-800
Introduction Date August 18, 1995
ECCN EAR99
Country of Origin Philippines
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BTW69-800RG CAD Model

Description

The BTW69-800RG is a robust and versatile Silicon Controlled Rectifier (SCR) manufactured by STMicroelectronics, a leader in semiconductor solutions. Designed to handle high power and high surge currents, this SCR is a perfect fit for applications requiring efficient and reliable control of AC power.

Key Features

  • High Current Rating: The BTW69-800RG can handle a maximum average on-state current of 50A, making it suitable for heavy-duty operations.
  • High Voltage Capability: With a repetitive peak off-state voltage (VDRM/VRRM) of 800V, this SCR can be used in circuits with high voltage requirements.
  • High Surge Current: It can withstand surge currents up to 475A, ensuring durability and reliability during transient conditions.
  • Gate Trigger Current: A low gate trigger current (IGT) makes it easier to switch the SCR on, providing more flexibility in control circuit design.
  • Thermal Resistance: The device features a junction to case thermal resistance of 0.65°C/W, which contributes to its thermal stability under operation.

Applications

The BTW69-800RG is widely used in a variety of applications where power control is essential. Some of the typical applications include:

  • Motor control for industrial machines
  • Phase control operations
  • Lighting dimmers
  • Battery chargers
  • Solid-state relays
  • Heating controls

Package and Quality

This SCR is packaged in a robust and isolated TO-247 package, which not only provides excellent heat dissipation but also ensures electrical isolation from the mounting surface. This package is well-suited for high-power applications where space is at a premium. Furthermore, the BTW69-800RG complies with the RoHS and Halogen-Free standards, reflecting STMicroelectronics' commitment to environmental sustainability.

Conclusion

The BTW69-800RG from STMicroelectronics represents a reliable and efficient solution for designers looking to manage high power loads with precision. Its combination of high current and voltage ratings, surge current capability, and low thermal resistance makes it an excellent choice for demanding applications that require robust performance.
