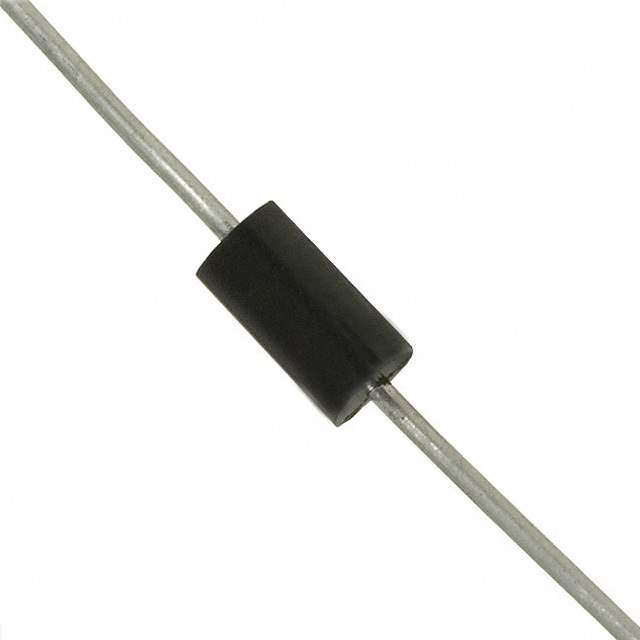

Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.2V @ 4.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 10μA @ 200V
Mounting Through Hole
Case / Package DO-15
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 109375-BYW100-200RL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BYW100
Introduction Date October 13, 1999
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BYW100-200RL CAD Model

Description

Product Overview: BYW100-200RL from STMicroelectronics

The BYW100-200RL is a high-performance rectifier diode designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable electronic components. This diode is specifically engineered to cater to a wide array of applications requiring efficient and fast switching capabilities.

Key Features

  • High Reverse Voltage: The BYW100-200RL boasts a reverse voltage of 200V, making it suitable for high-voltage applications.
  • Fast Switching Speed: With its fast recovery time, this diode is ideal for high-frequency operations and minimizes losses during switching.
  • Low Forward Voltage Drop: The low forward voltage drop ensures higher efficiency and reduced thermal stress during operation.
  • High Surge Current Capability: Its ability to handle high surge currents makes it reliable in applications with potential for transient overvoltages.
  • Robust Design: Encapsulated in a plastic package, the BYW100-200RL is designed for improved mechanical strength and moisture resistance.

Applications

The versatile nature of the BYW100-200RL rectifier diode allows it to be used in various applications, including:

  • Power supplies
  • Switching power converters
  • Freewheeling diodes in inverter circuits
  • Reverse battery protection
  • Motor controllers

Technical Specifications

Parameter Value Reverse Voltage (V<sub>R) 200V Average Rectified Current (I<sub>o) 1A Forward Voltage Drop (V<sub>F) Typically 1.25V at I<sub>F=1A Reverse Recovery Time (t<sub>rr) Typically 50ns Operating Junction Temperature (T<sub>j) -65°C to +175°C

In conclusion, the BYW100-200RL from STMicroelectronics is a robust and efficient solution for high-speed switching and rectification needs across a multitude of electronic applications. Its durability, coupled with STMicroelectronics' reputation for quality, makes it a reliable choice for designers and engineers alike.
