Products specifications

Categories Circuit Protection
Estimated Pruduction Lead Time 44 Weeks

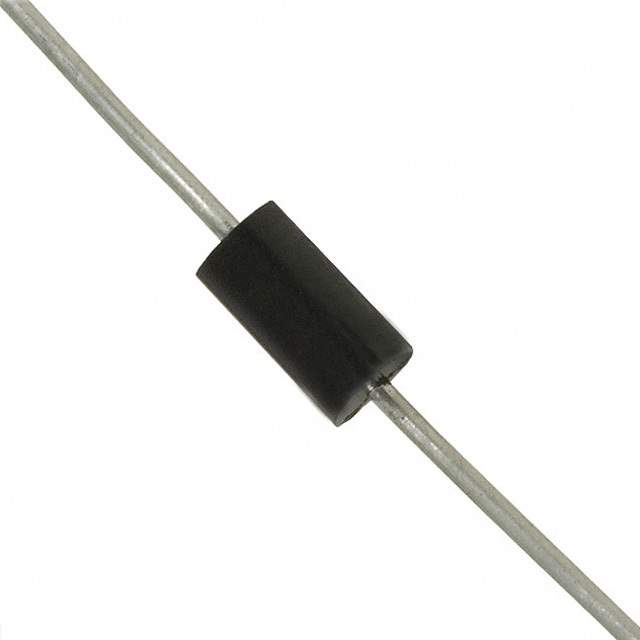

Features 64.3V Clamp 62A (8/20µs) Ipp Tvs Diode Through Hole DO-15 (DO-204AC)
Manufacturer STMicroelectronics
Series BZW06, TRANSIL™
Package Reel - TR
Mounting Through Hole
Package DO-204AC, DO-15, Axial
Case / Package DO-15 (DO-204AC)
Family Name BZW06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 497-12468-6INACTIVE, 497-12468-6, BZW06-31RL-ND, 497-12468-6-ND, -497-12468-2, -497-12468-1, BZW0631RL, 497-12468-2, 497-12468-1
Quantity per package 6000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865269-BZW06-31RL
Ultra Librarian 3D Model Ultra Librarian BZW06-31RL CAD Model

Description

The BZW06-31RL from STMicroelectronics is a robust Transil™ diode designed to provide high surge voltage protection by clamping action in a compact package. This device is specifically engineered to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Key Features

  • Stand-off Voltage: The BZW06-31RL offers a stand-off voltage of 31.1 volts, making it suitable for a range of applications where this level of protection is required.
  • Peak Pulse Power: It can handle a peak pulse power of 600 Watts (10/1000 μs surge), ensuring effective protection against high energy transients.
  • Fast Response Time: With its fast response time, the BZW06-31RL reacts quickly to surge events, minimizing the risk of damage to the protected component.
  • Low Clamping Voltage: The low clamping voltage of this diode helps to ensure that the voltage spike is kept to a minimum, thereby safeguarding sensitive circuits.
  • Package: Encased in a DO-15 package, the BZW06-31RL is designed for through-hole mounting, which is ideal for applications where mechanical robustness is a requirement.

Applications

The BZW06-31RL is versatile and can be used in a variety of applications, including:

  • Telecommunication systems
  • Industrial systems
  • Consumer electronics
  • Power supply units
  • Lightning protection for data lines

Reliability and Safety

STMicroelectronics ensures that its Transil™ diodes are highly reliable. The BZW06-31RL is compliant with industry standards, including IEC 61000-4-2 and IEC 61000-4-5, providing assurance of its capability to withstand electrostatic discharges and surge transients. Furthermore, the device is RoHS compliant, ensuring environmental friendliness by avoiding the use of hazardous substances.

Conclusion

The BZW06-31RL Transil™ diode from STMicroelectronics is an excellent choice for designers looking to enhance the surge protection in their circuits. Its combination of high surge capability, fast response time, and low clamping voltage, all in a robust package, make it a reliable and effective solution for transient voltage suppression.
