Products specifications

Categories Filters
Manufacturer STMicroelectronics
Series IPAD
Packaging Reel - TR
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 3
Resistance - Channel (Ohms) 47, 100
Values R = 47 Ohms, 100 Ohms, C = 17pF
ESD Protection Yes
Operating Temperature Range -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Mounting SMD

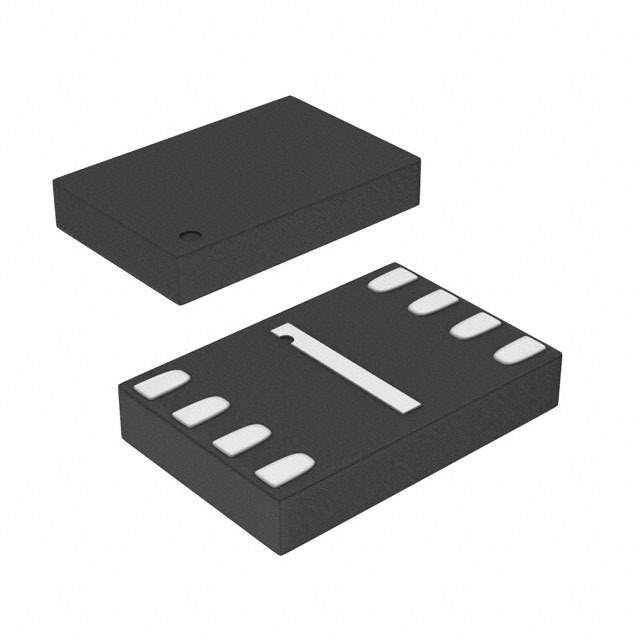

Package 8-UFDFN Exposed Pad
Size 0.067" L x 0.059" W (1.70mm x 1.50mm)
Height 0.024" (0.60mm)
Win Source Part Number 1171942-EMIF03-SIM02M8
Manufacturer Homepage www.st.com
Family Name EMIF03-SIM02M8
Introduction Date October 07, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EMIF03-SIM02M8 CAD Model

Description

EMIF03-SIM02M8: EMI Filtering and Signal Conditioning for SIM Interfaces

The EMIF03-SIM02M8 is a highly integrated solution designed by STMicroelectronics to provide Electromagnetic Interference (EMI) filtering and signal conditioning specifically tailored for Subscriber Identity Module (SIM) card interfaces. This compact component is essential for mobile phones, smart devices, and other telecommunications equipment, ensuring signal integrity and compliance with industry standards.

Key Features

  • EMI Filtering: The device includes a set of EMI filters that effectively suppress unwanted high-frequency noise, ensuring a clean signal for the SIM interface.
  • ESD Protection: Integrated Electrostatic Discharge (ESD) protection circuitry guards the SIM card interface against electrostatic discharges, enhancing the durability and reliability of the device.
  • High Integration: With multiple functions combined into a single package, the EMIF03-SIM02M8 minimizes the need for additional components, saving space on the PCB.
  • Low Pass Filter: The low pass filter topology is optimized for the specific signaling requirements of SIM card interfaces, providing excellent signal conditioning.
  • Low Clamping Voltage: The device offers a low clamping voltage, which is crucial for protecting sensitive circuitry in the event of voltage spikes.

Applications

  • Mobile Phones
  • Smart Devices
  • Telecommunication Systems
  • Portable Electronics with SIM Card Interfaces

Technical Specifications

  • Package: The EMIF03-SIM02M8 comes in a micro QFN-8 package, which is suitable for compact designs.
  • Operating Temperature Range: It operates within a temperature range of -40°C to +85°C, making it suitable for a wide range of environmental conditions.
  • Compliance: The device complies with the IEC 61000-4-2 standard for ESD immunity, ensuring compatibility with international safety requirements.

The EMIF03-SIM02M8 is a testament to STMicroelectronics' commitment to providing advanced protection and signal conditioning solutions. Its integration of multiple EMI filtering and ESD protection features into a single component makes it an excellent choice for designers looking to enhance the performance and robustness of their SIM card interfaces.
