Products specifications

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr STMicroelectronics
Series EMIF
Package Tape & Reel
Type Low Pass
Filter Order 3rd
Technology RLC
Number of Channels 6
Resistance - Channel (Ohms) 1
Values L = 1nH, C = 2.5pF
ESD Protection Yes
Temperature Range - Operating -30°C ~ 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)

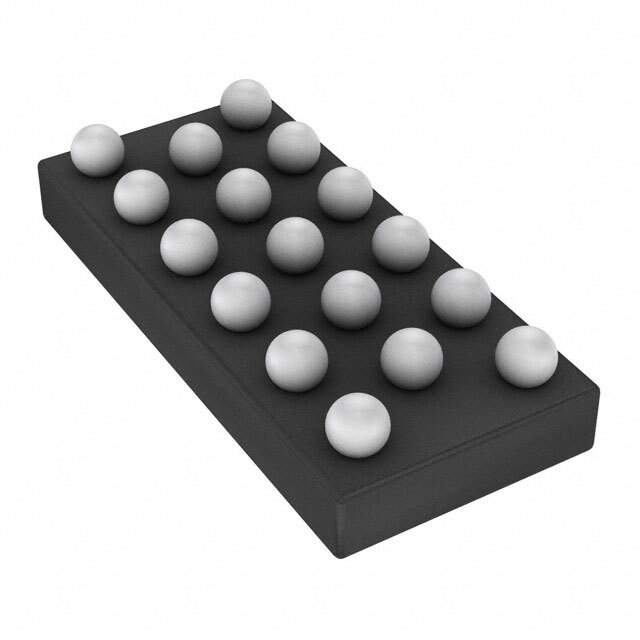

Package / Case 17-WFBGA, FCBGA
Dimension 0.094" L x 0.043" W (2.40mm x 1.10mm)
Height 0.026" (0.65mm)
Base Product Number EMIF06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names EMIF06-HSD03F3-ND,497-15334-1,497-15334-2,497-15334-6
Standard Package 5,000
Win Source Part Number 975146-EMIF06-HSD03F3
Ultra Librarian 3D Model Ultra Librarian EMIF06-HSD03F3 CAD Model

Description

EMIF06-HSD03F3: EMI Filtering and Signal Conditioning Integrated Solution

The EMIF06-HSD03F3 is a state-of-the-art EMI filtering and signal conditioning integrated device designed by STMicroelectronics, a global semiconductor leader. This product is specifically tailored for high-speed differential lines, making it an ideal choice for applications requiring both EMI suppression and signal integrity enhancement.

Key Features

  • High Integration: The EMIF06-HSD03F3 integrates six capacitors and three inductors within a single package, providing a compact solution for EMI filtering that saves valuable board space.
  • Optimized for High-Speed Interfaces: With its design, it is well-suited for high-speed differential data lines such as USB 2.0, HDMI, MIPI, and LVDS, ensuring that signal integrity is maintained while minimizing electromagnetic interference.
  • Low Insertion Loss: The device features low insertion loss, which is critical for maintaining signal amplitude and quality over high-speed data transmission.
  • Excellent ESD Protection: It offers robust electrostatic discharge (ESD) protection, safeguarding sensitive circuitry against common electrostatic threats.
  • Lead-Free and RoHS Compliant: The product adheres to environmental regulations, being lead-free and compliant with the Restriction of Hazardous Substances (RoHS) directive.

Applications

The EMIF06-HSD03F3 is versatile and can be used in a wide range of applications, including:

  • Mobile phones and smartphones
  • Tablets and portable computing devices
  • Digital cameras and video equipment
  • Personal media players
  • High-speed data interfaces in consumer electronics

Benefits

Integrating EMIF06-HSD03F3 into your design can yield several benefits:

  • Enhanced system reliability through effective EMI suppression and ESD protection.
  • Improved signal quality for high-speed data transfers.
  • Reduced component count leading to simplified design and assembly processes.
  • Minimized PCB space requirements, allowing for more compact and sleek device designs.

Overall, the EMIF06-HSD03F3 from STMicroelectronics delivers a powerful combination of EMI filtering and signal conditioning in a highly integrated package, making it an excellent choice for designers looking to optimize their high-speed data line performance while adhering to stringent EMI regulations.
