Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 8.2V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 25A (8/20μs)
Power Dissipation - Pd 500W
Applications General Purpose
Capacitance @ Frequency 210pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1037134-ESDA8V2-1J
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESDA8V2-1J CAD Model

Description

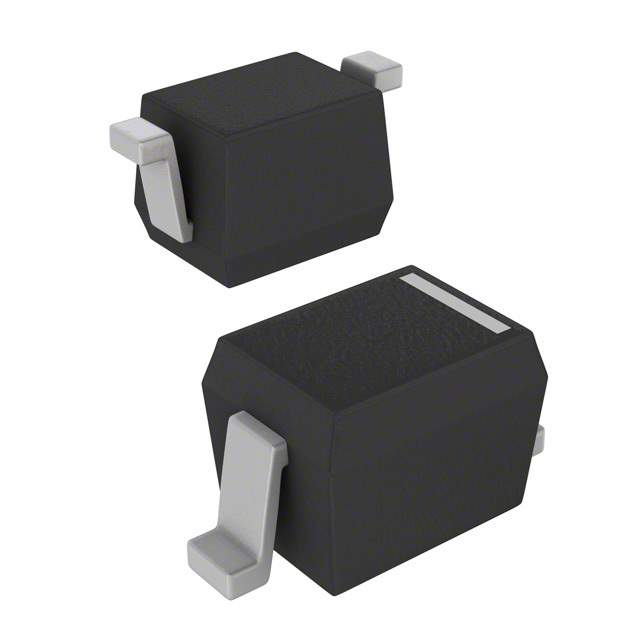

STMicroelectronics ESDA8V2-1J ESD Protection Device

The ESDA8V2-1J from STMicroelectronics is a robust ESD (Electrostatic Discharge) protection device, designed to safeguard high-speed data lines and other sensitive circuits from the potentially damaging effects of electrostatic discharge events. This component is an essential addition to any design where electronic devices are exposed to the risk of ESD, which can occur during manufacturing, handling, or operation in the field.

The ESDA8V2-1J is part of STMicroelectronics' Transilâ„¢ series, which are transient voltage suppressors optimized for ESD protection. The device features a low clamping voltage and a high surge capability, making it suitable for protecting voltage-sensitive components that can be found in telecommunications systems, computers, and other consumer electronics.

Key Features

  • Low Clamping Voltage: Offers excellent protection for sensitive circuits by clamping the overvoltage to a safe level during an ESD event.
  • High Surge Capability: Capable of withstanding high surge currents, ensuring reliable protection against transient voltage spikes.
  • Low Capacitance: The device has been designed with a low input capacitance, making it ideal for protecting high-speed data lines without significant signal attenuation.
  • Unidirectional Protection: Provides protection for one line, making it an efficient choice for specific signal lines requiring targeted protection.
  • Small Package Size: Comes in a compact SOD-323 package, which is suitable for space-constrained applications.
  • Compliance: Meets the IEC 61000-4-2 standard, ensuring compatibility with industry-standard ESD immunity requirements.

The ESDA8V2-1J is a versatile ESD protection solution that can be utilized in a wide range of applications. Its ability to safeguard against the immediate and cumulative effects of ESD makes it a critical component for enhancing the reliability and longevity of electronic products. Whether used in personal electronic devices, automotive systems, or industrial controls, the ESDA8V2-1J from STMicroelectronics provides peace of mind with its proven protection capabilities.

With its combination of features, the ESDA8V2-1J is a smart choice for designers looking to enhance the ESD resilience of their circuits without compromising on performance or board space.
