Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 5.8V
Max Clamping Voltage 13.5V (Typ)
Peak Pulse Current(Ippm) 10A (8/20μs)
Power Dissipation - Pd 140W
Applications General Purpose
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0201
Win Source Part Number 1037146-ESDAULC5-1BF4
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESDAULC5-1BF4 CAD Model

Description

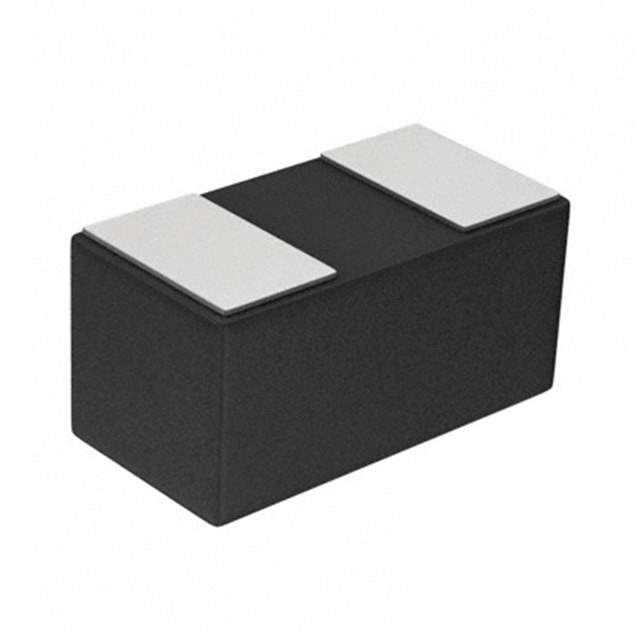

STMicroelectronics ESDAULC5-1BF4 Transil™ ESD Protection Device

The ESDAULC5-1BF4 from STMicroelectronics is a state-of-the-art Transil™ diode designed to protect sensitive electronic equipment from electrostatic discharge (ESD) and other transient voltage events. This robust, bidirectional single-line TVS (Transient Voltage Suppressor) is ideal for high-speed data lines and USB power lines, providing reliable protection while maintaining signal integrity.

Key Features:

  • Low Capacitance: With a very low line capacitance of only 0.7 pF, the ESDAULC5-1BF4 ensures that high-speed signals are not distorted, making it suitable for applications such as USB 2.0, USB 3.0, HDMI, and Gigabit Ethernet interfaces.
  • High ESD Protection: It can withstand ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard, providing robust protection for sensitive components.
  • Low Leakage Current: The device features an ultra-low leakage current of less than 0.1 µA, which is essential for power-sensitive applications.
  • Small Package: Housed in a tiny SOD882L package, it requires minimal board space, making it an excellent choice for space-constrained applications.
  • Lead-Free and RoHS Compliant: The ESDAULC5-1BF4 is designed with environmental regulations in mind, ensuring compliance with current RoHS directives.

Applications:

The ESDAULC5-1BF4 is versatile and can be used in a variety of applications, including:

  • Mobile Phones and Wearables
  • Computers and Peripherals
  • Networking Devices and IoT Systems
  • Consumer Electronics
  • Medical Devices with Data Lines

Quality and Reliability:

STMicroelectronics is renowned for its commitment to quality, and the ESDAULC5-1BF4 is no exception. It is manufactured in ISO 9001 and ISO/TS 16949 certified facilities, ensuring that each device meets the highest quality and reliability standards. The ESDAULC5-1BF4 is a testament to STMicroelectronics' dedication to providing advanced protection solutions for today's electronic devices.
