Products specifications

Category Circuit Protection>TVS - Diodes
Mfr STMicroelectronics
Series ESDZ
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 18V
Voltage - Clamping (Max) @ Ipp 21.5V (Typ)
Current - Peak Pulse (10/1000µs) 6A (8/20µs)
Power - Peak Pulse 140W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 3pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)

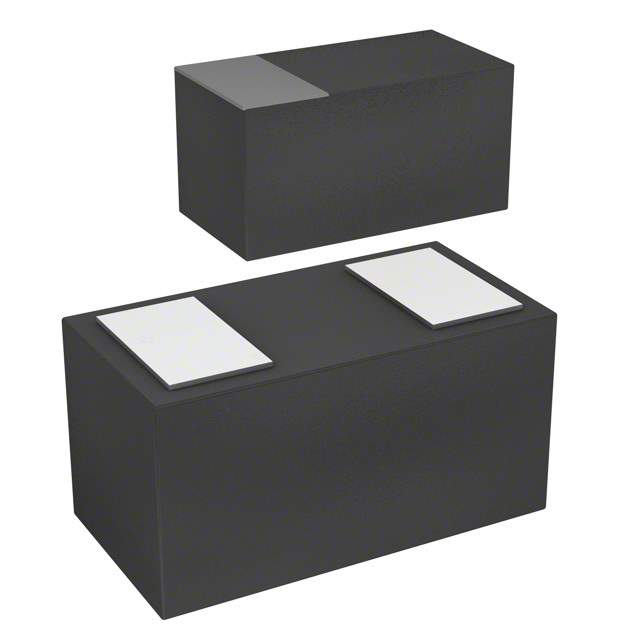

Package / Case 0201 (0603 Metric)
Supplier Device Package ST0201
Base Product Number ESDZV18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 30,000
Win Source Part Number 963940-ESDZV18-1BF4TK
Ultra Librarian 3D Model Ultra Librarian ESDZV18-1BF4TK CAD Model

Description

The ESDZV18-1BF4TK is a high-performance transient voltage suppressor (TVS) diode, designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This discrete device is specifically engineered to protect sensitive electronic equipment from electrostatic discharge (ESD) and other voltage-induced transient events. With its ultra-compact package and robust design, the ESDZV18-1BF4TK is an ideal choice for a wide range of applications, including mobile devices, computers, and other consumer electronics.

Key Features

  • Stand-off voltage: 18 V, providing efficient protection for sensitive circuits.
  • Low clamping voltage: Ensures minimal impact on the protected component during transient conditions.
  • Peak pulse power: Capable of handling high transient power, ensuring reliable protection against ESD events.
  • Low leakage current: Enhances the energy efficiency of the end application by reducing power loss.
  • Fast response time: Offers immediate protection, reacting quickly to transient events to safeguard components.
  • SOD-323 package: Ultra-small, flat lead surface-mounted device that occupies minimal board space, making it suitable for high-density circuit designs.

Applications

The ESDZV18-1BF4TK is versatile and can be used in various applications to protect against ESD and other transient voltages. Some of the common applications include:

  • Protection of I/O interfaces and data lines in portable devices.
  • ESD protection for components in USB interfaces, HDMI, and other high-speed data lines.
  • Telecommunication systems where signal integrity and component protection are crucial.
  • Consumer electronics that require durable ESD protection without compromising the device's performance.

Product Quality and Reliability

STMicroelectronics is committed to delivering high-quality and reliable components. The ESDZV18-1BF4TK is manufactured with the stringent quality control processes for which STMicroelectronics is known, ensuring that each device meets the highest standards of performance and reliability.
