Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Input 12V
Regulator Topology Resonant
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part SRK2001
Base Product Number EVL-SRK2001
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1341644-EVL-SRK2001-HVS
Ultra Librarian 3D Model Ultra Librarian EVL-SRK2001-HVS CAD Model

Description

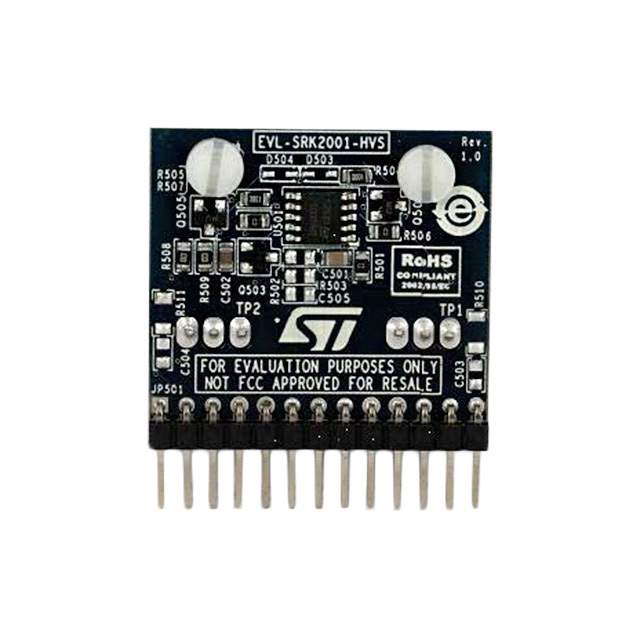

EVL-SRK2001-HVS: An Advanced Secondary-Side Synchronous Rectification Evaluation Board from STMicroelectronics

The EVL-SRK2001-HVS from STMicroelectronics is an evaluation board specifically designed to demonstrate the capabilities of the SRK2001 controller, optimized for secondary-side synchronous rectification in switched-mode power supplies (SMPS). This product is a vital tool for engineers and designers looking to enhance the efficiency of their power supply designs, particularly for applications such as servers, telecom power supplies, and industrial power systems.

Key Features:

  • High-Voltage Support: The EVL-SRK2001-HVS is capable of handling high-voltage applications, making it suitable for a wide range of power levels and ensuring versatility in various design scenarios.
  • Adaptive Turn-Off Logic: The board incorporates an intelligent control circuit that adapts the turn-off timing of the synchronous rectifier MOSFET to minimize power losses and improve overall efficiency.
  • Accurate Current Sensing: With a precise current sensing mechanism, the EVL-SRK2001-HVS provides reliable operation by detecting the current flow through the synchronous rectifier, ensuring optimal performance and protection.
  • Easy-to-Use Interface: The evaluation board comes with a user-friendly interface that allows for quick setup and testing, enabling designers to evaluate the secondary-side synchronous rectification solution with minimal effort.
  • Protection Features: The board includes various protection features such as over-voltage, under-voltage, and thermal shutdown to ensure safe operation under different conditions.

Applications:

The EVL-SRK2001-HVS is designed for use in a variety of applications where efficiency and reliability are critical. It is particularly well-suited for:

  • Server and telecom power supplies
  • Industrial power systems
  • Charging stations for electric vehicles
  • High-performance power adapters

With its robust design and advanced features, the EVL-SRK2001-HVS evaluation board is an excellent choice for professionals seeking to improve the efficiency and performance of their power supply systems. It showcases STMicroelectronics' commitment to providing innovative solutions for power management challenges in today's energy-conscious world.
