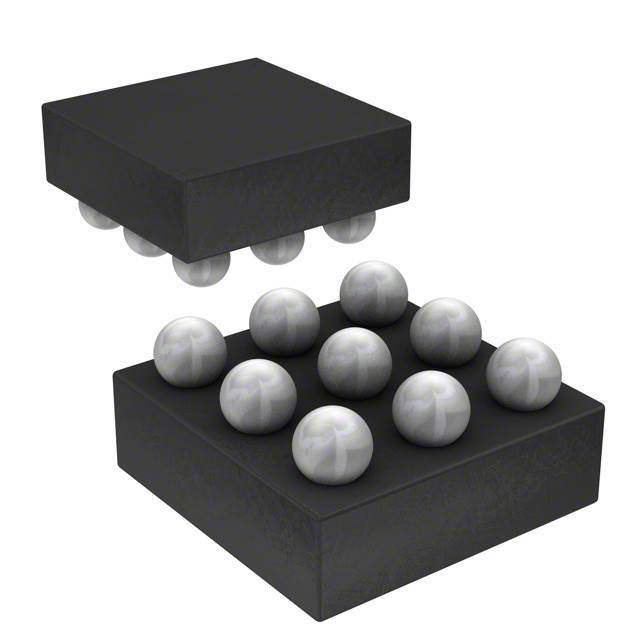

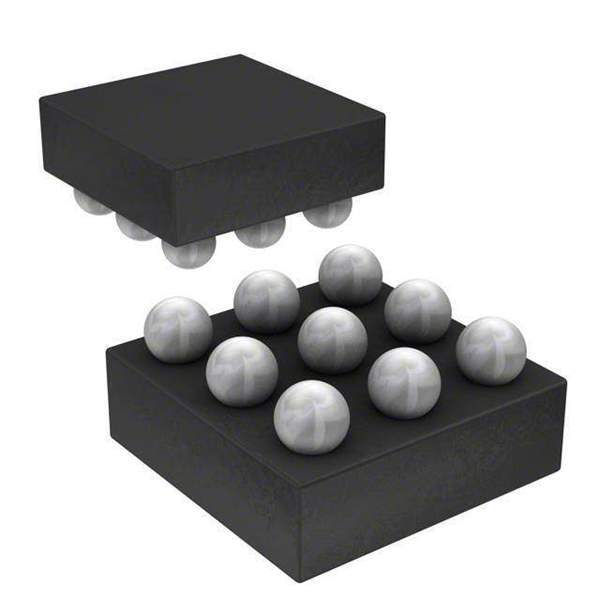

STMicroelectronics HDMI05-CL02F3 HDMI ESD Protection

The HDMI05-CL02F3 from STMicroelectronics is a state-of-the-art HDMI transient voltage suppressor designed to protect high-speed interfaces from electrostatic discharge (ESD) and other voltage-induced transient events. This product is a part of STMicroelectronics' extensive range of ESD protection devices, tailored to safeguard sensitive electronics against the harmful effects of sudden surges and spikes in voltage.

Key Features

• High ESD Protection: The HDMI05-CL02F3 offers robust ESD protection up to 5 kV (kilovolts) in accordance with the IEC 61000-4-2 standard, ensuring the safety of HDMI interfaces under extreme conditions.
• Low Capacitance: With an ultra-low line capacitance of 0.7 pF (picofarads), this device ensures signal integrity for high-speed data lines, making it ideal for HDMI 1.4/2.0/2.1 and other high-frequency applications.
• Low Leakage Current: The device is engineered to have a very low leakage current, minimizing power consumption and heat generation when the system is in idle mode.
• High Reliability: Manufactured with STMicroelectronics' advanced process technology, the HDMI05-CL02F3 exhibits high reliability and performance consistency, which is critical for maintaining the longevity of electronic equipment.
• Small Package: The HDMI05-CL02F3 comes in a compact SOT23-6L package, making it suitable for space-constrained applications without compromising on performance.

Applications

The HDMI05-CL02F3 is designed for a wide range of applications, particularly where HDMI interfaces are present. This includes consumer electronics such as TVs, set-top boxes, gaming consoles, and personal computers, as well as professional audio/video equipment. Its high ESD protection level and low capacitance make it an excellent choice for ensuring the integrity and reliability of high-speed digital communications.

Conclusion

With its combination of high ESD protection, low capacitance, and a small form factor, the HDMI05-CL02F3 from STMicroelectronics is an essential component for designers looking to enhance the durability and performance of their HDMI-enabled devices. It is a testament to STMicroelectronics' commitment to providing advanced protection solutions for the ever-evolving electronics industry.
