Same model may have multiple batches, images only for reference.

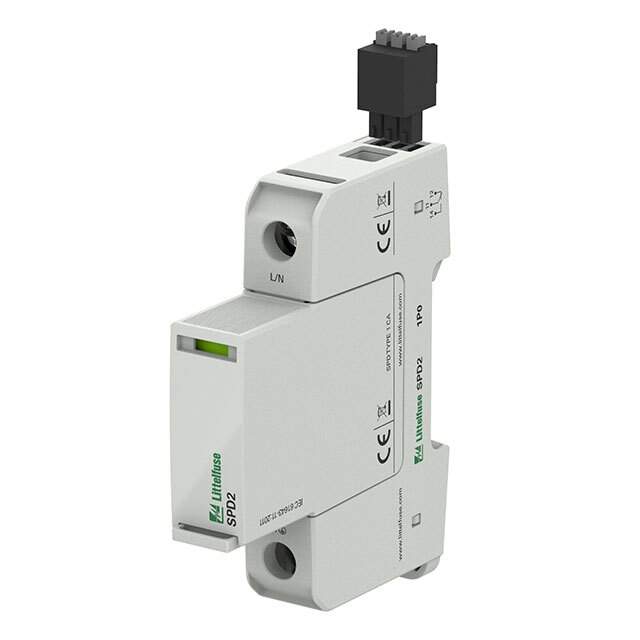

SPD2-550-1P0-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-550-1P0-R

Part No SPD2-550-1P0-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 1P+0 550VAC TYPE 1+2
Datasheet
SPD2-550-1P0-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 1P+0
Type Type 1, Type 2
Form Base + Module
Number of Poles 1
Voltage - Continuous Operating (Max) (MCOV) 550VAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 50 kA
Current - Short Circuit Rating (SCRR) 200 kA
Voltage - Protection Rating (VPR) 2 kV
Voltage - Protection Level (VP) (2416) 2.5 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency CE, cURus, UL, VDE
Other Names F12044,-1024-SPD2-550-1P0-R
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294367-SPD2-550-1P0-R
Ultra Librarian 3D Model Ultra Librarian SPD2-550-1P0-R CAD Model

Description

The SPD2-550-1P0-R is a surge protection device (SPD) manufactured by Littelfuse Inc.

  • Application: Circuit protection
  • Maximum Continuous Operating Voltage (MCOV): 550VAC
  • Features: Thermally protected and has remote signaling contacts
  • Operating Temperature Range: -40°C to 80°C
  • Type: Type 1 and Type 2 SPD
  • Form Factor: Base and module
  • Mounting: DIN rail
  • Current Discharge (Nom): 20 kA (8/20µS)
  • Maximum Discharge: 50 kA (8/20µS)
  • Voltage Protection Rating (VPR): 2 kV
  • Protection Level (VP): 2.5 kV
  • Approvals: CE, cURus, UL, and VDE
