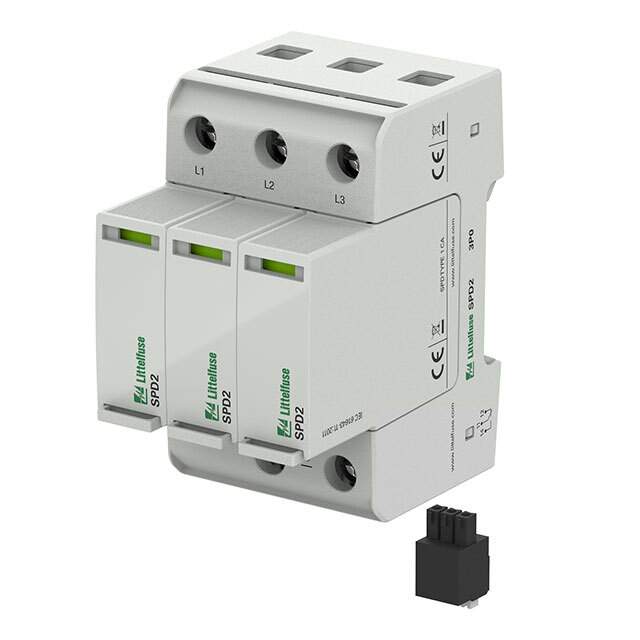

SPD2-PV15-3P0-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-PV15-3P0-R

Part No SPD2-PV15-3P0-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 3P+0 1500VDC TYPE 1+2
Datasheet
SPD2-PV15-3P0-R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 PV
Type Type 1, Type 2
Form Base + Module
Number of Poles 3
Voltage - Continuous Operating (Max) (MCOV) 1.5kVAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 30 kA
Current - Short Circuit Rating (SCRR) 65 kA
Voltage - Protection Rating (VPR) 4 kV
Voltage - Protection Level (VP) (2416) 5 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency cURus, UL, VDE
Other Names -1024-SPD2-PV15-3P0-R,F12071
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294353-SPD2-PV15-3P0-R
Ultra Librarian 3D Model Ultra Librarian SPD2-PV15-3P0-R CAD Model

Description

The SPD2-PV15-3P0-R is a circuit protection component manufactured by Littelfuse Inc.

  • Series: SPD2 PV
  • Component Type: Type 1 and Type 2
  • Remote Signaling Contacts: Yes
  • Thermally Protected: Yes
  • Voltage Protection Rating: 4kV
  • Voltage Protection Level: 5kV
  • Approvals: cURus, UL, and VDE
  • Use Case: For electronic devices that require high-quality circuit protection
