The HDMI2C4-5F2 is a cutting-edge HDMI companion chip designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This product is specifically tailored to enhance the performance and protection of HDMI interfaces. With the integration of advanced features, the HDMI2C4-5F2 ensures that devices such as televisions, computer monitors, and digital projectors can deliver high-definition multimedia experiences with superior quality and reliability.

Main Features

• High ESD Protection: The HDMI2C4-5F2 offers robust electrostatic discharge (ESD) protection up to 8 kV (contact discharge) and 15 kV (air discharge), in compliance with the IEC 61000-4-2 standard, ensuring the longevity and durability of the HDMI interface.
• Enhanced Signal Integrity: This chip is designed to preserve signal integrity even under harsh conditions, enabling the transmission of high-resolution audio and video without degradation or loss of quality.
• Low Capacitance Design: With its low-capacitance design, the HDMI2C4-5F2 minimizes signal attenuation, ensuring that high-speed signals are transmitted with minimal distortion, which is critical for maintaining the quality of 4K and higher video resolutions.
• Compatibility: The device supports HDMI 2.0, HDCP 1.3 and 2.2, and is backward compatible with earlier HDMI specifications, making it a versatile solution for a wide range of applications.

Applications

The HDMI2C4-5F2 is ideal for a variety of applications that require high-definition content transmission with impeccable quality. It is commonly used in:

• Digital TVs and Smart TVs
• Computer Monitors
• Video Projectors
• Set-Top Boxes
• Blu-ray Players

Technical Specifications

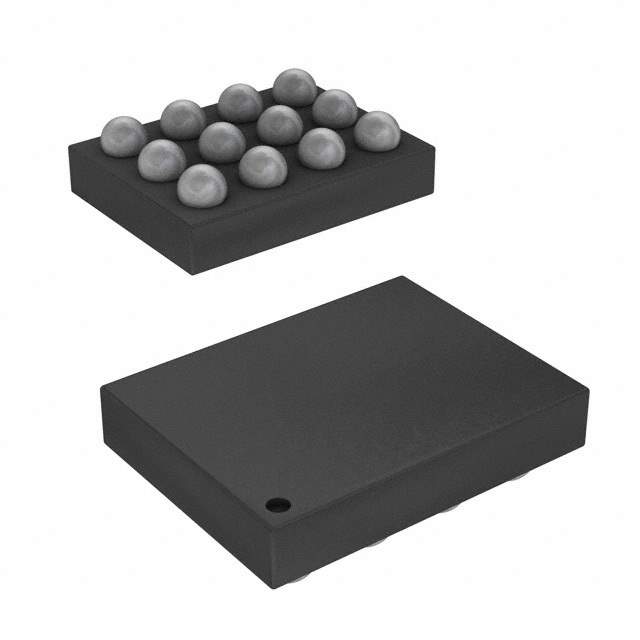

The HDMI2C4-5F2 is equipped with four differential channels capable of supporting TMDS (Transition Minimized Differential Signaling) signals, and features a dedicated 5 V line protection. It is packaged in a small-outline package, ensuring a compact footprint for space-constrained applications.

Conclusion

With its advanced protection features, superior signal integrity, and compatibility with the latest HDMI standards, the HDMI2C4-5F2 from STMicroelectronics is an excellent choice for manufacturers looking to deliver high-quality, reliable multimedia devices to the market. Its robust design ensures that it can withstand the rigors of daily use, making it a smart investment for any HDMI-enabled device.
