The IPS4260LTR from STMicroelectronics is a state-of-the-art intelligent power switch designed for a variety of applications that require efficient and reliable power distribution and control. This quad channel, high-side power switch is an integral component for modern electronic systems, providing both protection and diagnostic features.

Key Features

• Quad Channel: The IPS4260LTR features four independent power switch channels, allowing for multiple outputs to be controlled simultaneously.
• High-Side Switch: As a high-side switch, it connects the load to the positive supply line, enabling safe and efficient current flow.
• Current Limitation: Each channel is equipped with current limiting to protect the system from overcurrent conditions.
• Thermal Shutdown: With a built-in thermal shutdown feature, the device ensures protection against overheating, enhancing the longevity and reliability of your application.
• Overvoltage Protection: The IPS4260LTR is designed to withstand transients and protect against overvoltage, ensuring stable operation under various conditions.
• Diagnostic Feedback: Diagnostic feedback is provided for each channel, enabling the system to monitor and respond to fault conditions.

Applications

The versatility of the IPS4260LTR makes it suitable for a wide range of applications, including but not limited to:

• Industrial automation
• Automotive systems
• LED lighting control
• Smart home devices
• Building management systems

Technical Specifications

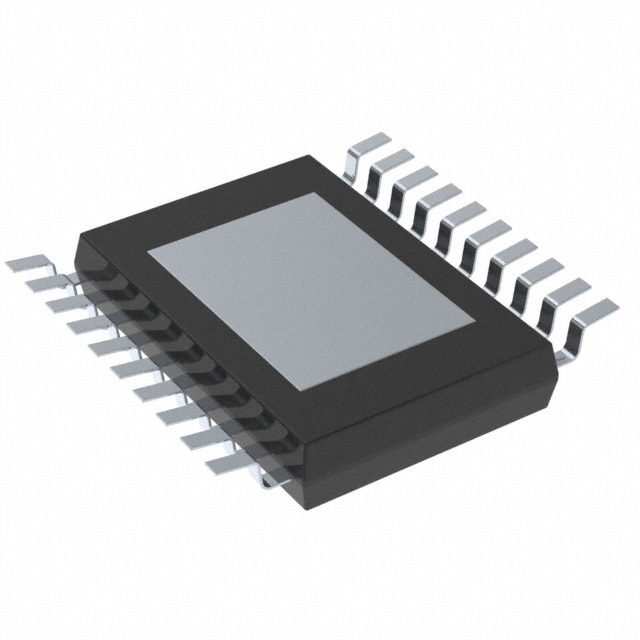

With an operating voltage range from 8V to 60V, the IPS4260LTR can handle significant power levels. The switch is capable of a continuous current of up to 5A per channel, which can be sufficient for various high-power applications. The device is housed in a compact PowerSSO-36 package, making it suitable for space-constrained environments.

For designers and engineers looking for a robust and intelligent solution for power switching and distribution, the IPS4260LTR from STMicroelectronics offers a perfect blend of performance, protection, and diagnostic capabilities that can enhance the safety and efficiency of electronic systems.
